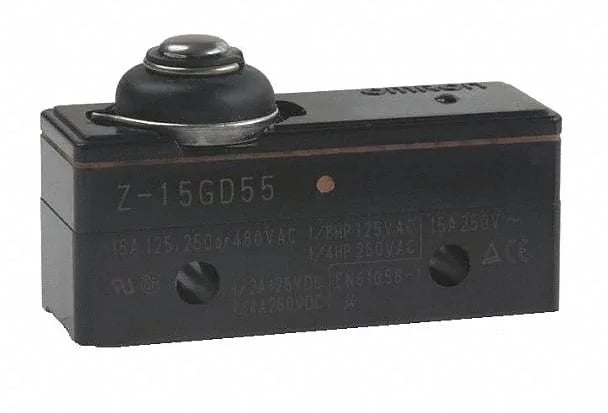

Omron Z-15GD55
MPNZ-15GD55
OMRON Snap Action Switch: Plunger Actuator, 1NO/1NC, Solder
$11.30 – $23.71Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Z |
| Contact form | 1NO/1NC |
| Mounting hole diameter | 3/16 in |
| Center mounting hole distance | 1 in |
| Electrical connection | Solder |
| Operating temperature - maximum | 176 °F |
| Operating temperature - minimum | -13 °F |
| Body depth | 1.17 in |
| Body width | 1.94 in |
| Body height | 0.69 in |
| Body material | Phenolic |
| Overall depth | 0.69 in |
All specifications
| Parameter | Value |
|---|---|
| Overall width | 1.94 in |
| Overall height | 0.69 in |
| Standards | CSA; UL Listed |
| Brand | OMRON |
| Pre-Travel | 0.071 in |
| Display qty | 1 |
| Over travel | 0.063 in |
| Release force | 4.03 ozf |
| Actuator style | Plunger |
| Display sell UOM | EA |
| AC contact rating | 15 A @ 250 V |
| DC contact rating | 15 A @ 14 V |
| Roller adjustability | Fixed |
| Operating force - maximum | 5.3 N |
| Operating force - minimum | 5.29 N |
| Differential travel - maximum | 0.0024 in |
MPN
Z-15GD55
