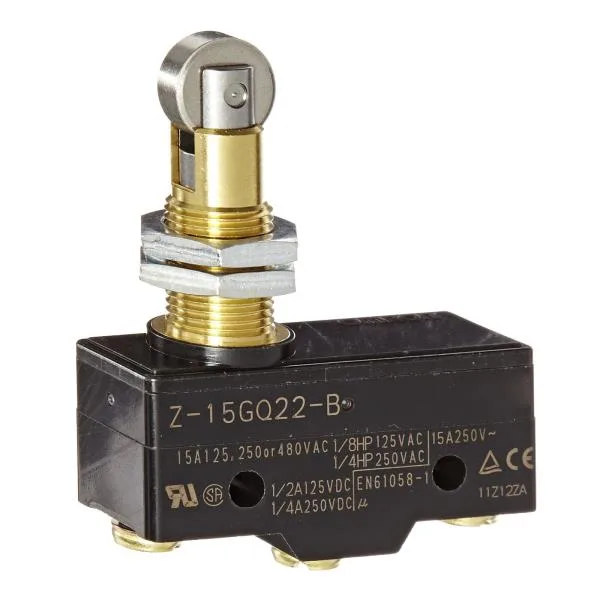

Omron Z-15GQ22-B
MPNZ-15GQ22-B
OMRON Z-15GQ22-B LIMIT SWITCH
$15.68Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Specifications
| Parameter | Value |
|---|---|
| Type | Limit Switch |
| Model | Z-15GQ22-B |
| Weight | 0,06 kg |
| Condition | Used |
| Pretravel | 0.015″ (0.4mm) |
| Shelf no. | 230303 |
| Overtravel | 0.141″ (3.6mm) |
| Actuation | Roller Plunger |
| Release force | 114gf |
| Operating force | 250 ~ 350gf |
| Contact operation | Snap Action |
| Differential travel | 0.002″ (0.05mm) |
| Output configuration | NO + NC |
| Current rating | 15A (AC), 6A (DC) |
| Voltage rating – AC | 125 V |
| Voltage rating – DC | 30 V |
| Ambient operating temperature | -25°C … 80°C |
MPN
Z-15GQ22-B
