Omron Z-15GW2 — Limit Switches

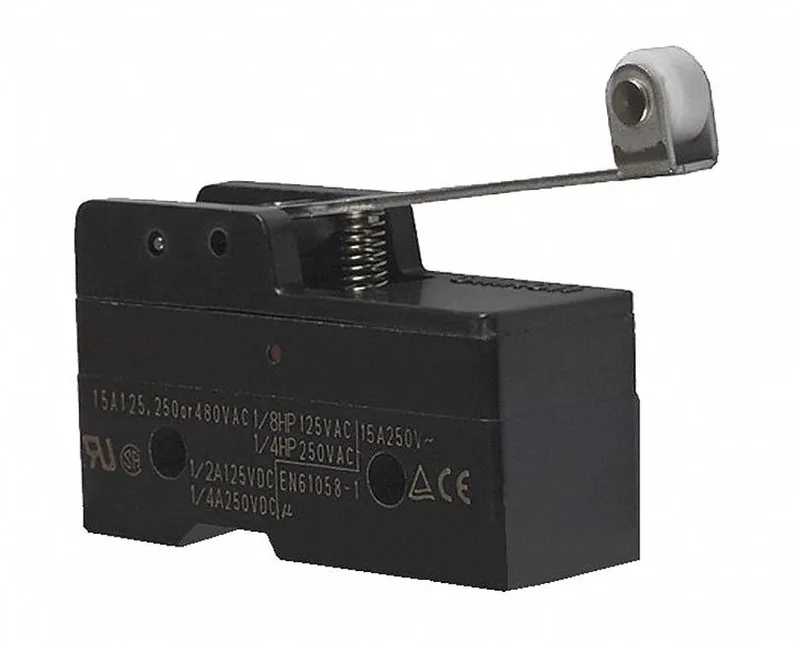

Omron Z-15GW2

MPNZ-15GW2

OMRON Snap Action Switch: Hinge Roller Lever Actuator, 1NO/1NC, Solder

$7.11 – $21.55Ref. price · indicative, final on quote
Omron Z-15GW2 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

Z-15GW2 key specifications
ParameterValue
SeriesZ
Contact form1NO/1NC
Mounting hole diameter3/16 in
Center mounting hole distance1 in
Electrical connectionSolder
Operating temperature - maximum176 °F
Operating temperature - minimum-13 °F
Body depth0.69 in
Body width1.94 in
Body height0.69 in
Roller width0.16 in
Body materialPhenolic

All specifications

Z-15GW2 additional specifications
ParameterValue
Overall depth0.69 in
Overall width1.94 in
Overall height0.69 in
Roller materialPlastic
StandardsCSA; UL Listed
BrandOMRON
Pre-Travel0.28 in
Display qty1
Over travel0.157 in
Release force0.79 ozf
Actuator styleHinge Roller Lever
Roller diameter0.37 in
Roller positionInside Offset
Display sell UOMEA
AC contact rating15 A @ 250 V
DC contact rating15 A @ 14 V
Roller adjustabilityFixed
Lever actuator length1.05 in
Operating force - maximum0.98 N
Operating force - minimum0.98 N
Differential travel - maximum0.0402 in
MPN
Z-15GW2
