Omron Z-15GW21-B — Limit Switches

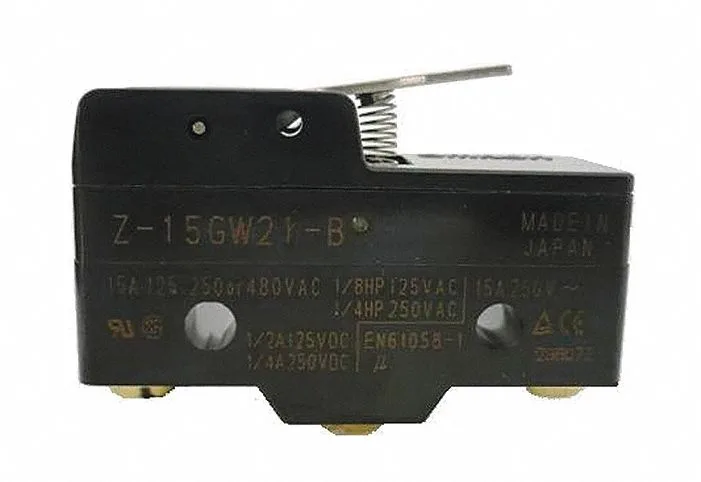

Omron Z-15GW21-B

MPNZ-15GW21-B

OMRON Snap Action Switch: Hinge Lever Actuator, 1NO/1NC, Screw

$9.14 – $17.19Ref. price · indicative, final on quote
Omron Z-15GW21-B datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

Z-15GW21-B key specifications
ParameterValue
SeriesZ
Contact form1NO/1NC
Mounting hole diameter3/16 in
Center mounting hole distance1 in
Electrical connectionScrew
Operating temperature - maximum176 °F
Operating temperature - minimum-13 °F
Body depth1.47 in
Body width1.94 in
Body height0.69 in
Body materialPhenolic
Overall depth0.69 in

All specifications

Z-15GW21-B additional specifications
ParameterValue
Overall width1.94 in
Overall height0.69 in
StandardsCSA; UL Listed
BrandOMRON
Pre-Travel0.08 in
Display qty1
Over travel0.079 in
Release force0.97 ozf
Actuator styleHinge Lever
Display sell UOMEA
AC contact rating15 A @ 250 V
DC contact rating15 A @ 14 V
Roller adjustabilityFixed
Lever actuator length1.11 in
Operating force - maximum1.57 N
Operating force - minimum1.57 N
Differential travel - maximum0.0394 in
MPN
Z-15GW21-B
