Omron Z-15GW2277 — Limit Switches

Omron Z-15GW2277

MPNZ-15GW2277

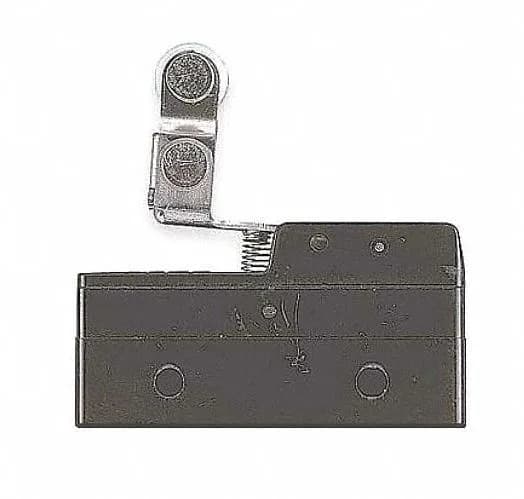

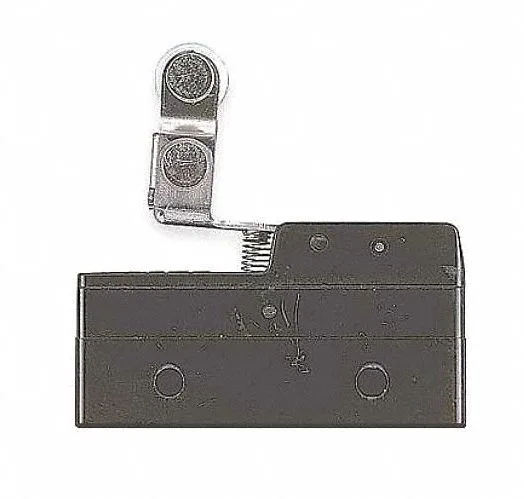

OMRON Snap Action Switch: Hinge Roller Lever Actuator, 1NO/1NC, Solder

$9.50 – $24.28Ref. price · indicative, final on quote
Omron Z-15GW2277 datasheet (PDF)
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

Z-15GW2277 key specifications
ParameterValue
SeriesZ
Contact form1NO/1NC
Mounting hole diameter3/16 in
Center mounting hole distance1 in
Electrical connectionSolder
Operating temperature - maximum176 °F
Operating temperature - minimum-13 °F
Body depth1.97 in
Body width1.94 in
Body height0.69 in
Roller width0.16 in
Body materialPhenolic

All specifications

Z-15GW2277 additional specifications
ParameterValue
Overall depth0.69 in
Overall width1.94 in
Overall height0.69 in
Roller materialPlastic
StandardsCSA; UL Listed
BrandOMRON
IncludesShort Hinge Roller Lever
Pre-Travel0.095 in
Display qty1
Over travel0.094 in
Release force1.47 ozf
Actuator styleHinge Roller Lever
Roller diameter0.37 in
Roller positionOutside Offset
Display sell UOMEA
AC contact rating15 A @ 250 V
DC contact rating15 A @ 14 V
Roller adjustabilityFixed
Lever actuator length1.26 in
Operating force - maximum1.77 N
Operating force - minimum1.67 N
Differential travel - maximum0.0315 in
MPN
Z-15GW2277
