Omron Z-15GW4-B7-K
MPNZ-15GW4-B7-K

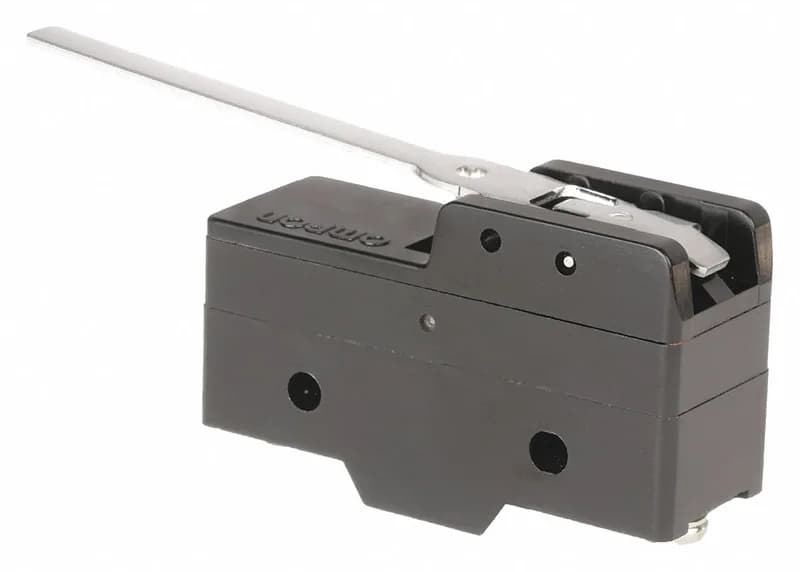

OMRON Snap Action Switch: Hinge Lever Actuator, 1NO/1NC, Screw
$10.67 – $22.22Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Series | Z |
| Contact form | 1NO/1NC |
| Mounting hole diameter | 3/16 in |
| Center mounting hole distance | 1 in |
| Electrical connection | Screw |
| Operating temperature - maximum | 176 °F |
| Operating temperature - minimum | -13 °F |
| Body depth | 0.69 in |
| Body width | 1.94 in |
| Body height | 0.69 in |
| Body material | Phenolic |
| Overall depth | 0.69 in |
All specifications
| Parameter | Value |
|---|---|
| Overall width | 1.94 in |
| Overall height | 0.69 in |
| Standards | CSA; UL Listed |
| Brand | OMRON |
| Includes | Low-Force Hinge Lever |
| Pre-Travel | 0.22 in |
| Display qty | 1 |
| Over travel | 0.22 in |
| Release force | 0.12 ozf |
| Actuator style | Hinge Lever |
| Display sell UOM | EA |
| AC contact rating | 15 A @ 250 V |
| DC contact rating | 15 A @ 14 V |
| Lever actuator length | 2.5 in |
| Operating force - maximum | 0.27 N |
| Operating force - minimum | 0.27 N |
| Differential travel - maximum | 0.05 in |
MPN
Z-15GW4-B7-K
