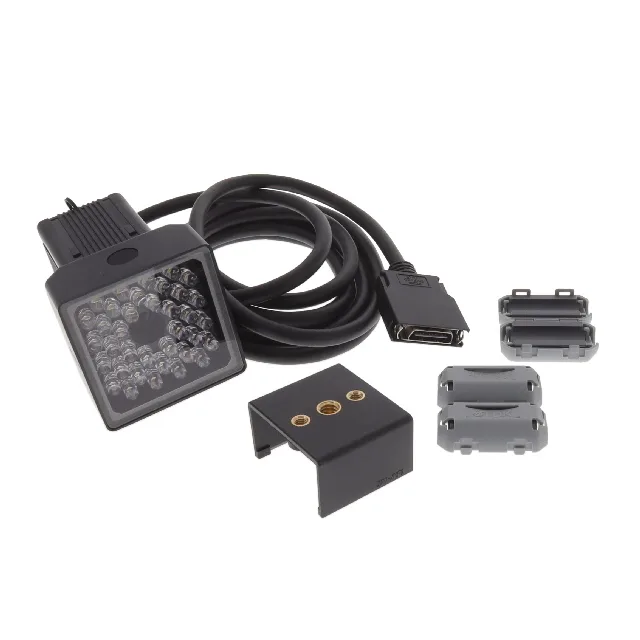

Omron ZFV-SC50
MPNZFV-SC50
Active
IMAGING CAMERA CHASSIS MOUNT
$1,100.71 – $2,090.70Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Device type | Imaging Camera |
| Series | ZFV |
| Parameter | Value |
|---|---|
| Sensor type | CCD |
| Visual field, max. | 50.0mm x 46.0mm |
| Visual field, min. | 10.0mm x 9.2mm |
| Installation distance | 31.0mm ~ 187.0mm |
| Parameter | Value |
|---|---|
| Light source | Integrated (White) |
| Parameter | Value |
|---|---|
| Supply voltage | 15VDC |
| Parameter | Value |
|---|---|
| Mounting type | Chassis Mount |
| Termination style | Cable with Connector |
| Parameter | Value |
|---|---|
| Operating temperature | 0°C ~ 40°C |
| Ingress protection (IP rating) | IP65 - Dust Tight, Water Resistant |
| Parameter | Value |
|---|---|
| Weight | 1.1 lbs (499 g) |
MPN
ZFV-SC50
