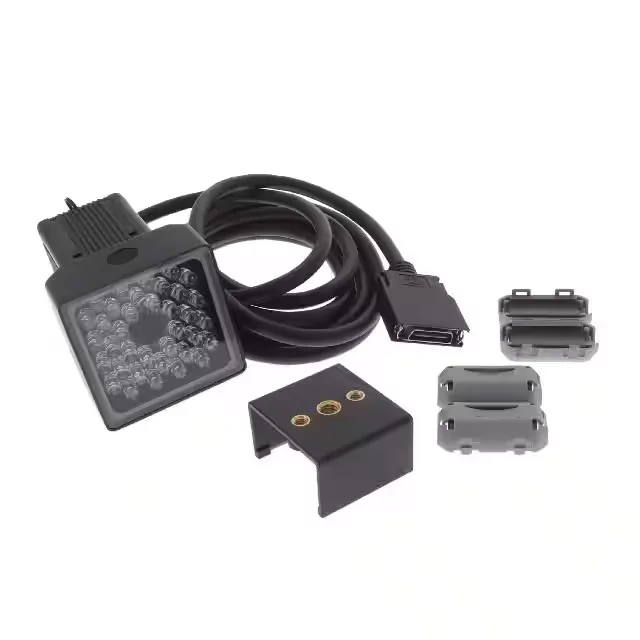

Omron ZFV-SC50W
MPNZFV-SC50W
Active
IMAGING CAMERA CHASSIS MOUNT
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Device type | Imaging Camera |
| Series | ZFV |
Imaging & Optics
| Parameter | Value |
|---|---|
| Sensor type | CCD |
| Visual field, max. | 50.0mm x 46.0mm |
| Visual field, min. | 10.0mm x 9.2mm |
| Installation distance | 31.0mm ~ 187.0mm |
Illumination
| Parameter | Value |
|---|---|
| Light source | Integrated (White) |
Electrical
| Parameter | Value |
|---|---|
| Supply voltage | 15VDC |
Mechanical
| Parameter | Value |
|---|---|
| Mounting type | Chassis Mount |
| Termination style | Cable with Connector |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature | 0°C~40°C |
| Ingress protection (IP rating) | IP67 - Dust Tight, Waterproof |
Other specifications
| Parameter | Value |
|---|---|
| Weight | 1.1 lbs (499 g) |
MPN
ZFV-SC50W
