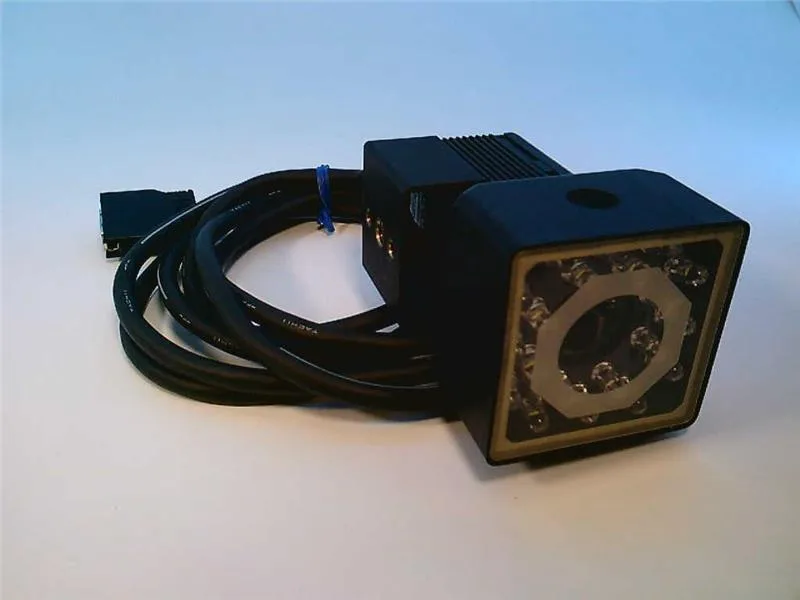

Omron ZFV-SC90
MPNZFV-SC90
Active
IMAGING CAMERA CHASSIS MOUNT
$1,369.06Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Device type | Imaging Camera |
| Series | ZFV |
| Parameter | Value |
|---|---|
| Sensor type | CCD |
| Visual field, max. | 90.0mm x 83.0mm |
| Visual field, min. | 50.0mm x 46.0mm |
| Installation distance | 66.0mm ~ 141.0mm |
| Parameter | Value |
|---|---|
| Light source | Integrated (White) |
| Parameter | Value |
|---|---|
| Supply voltage | 15VDC |
| Parameter | Value |
|---|---|
| Mounting type | Chassis Mount |
| Termination style | Cable with Connector |
| Parameter | Value |
|---|---|
| Operating temperature | 0°C~40°C |
| Ingress protection (IP rating) | IP65 - Dust Tight, Water Resistant |
| Parameter | Value |
|---|---|
| Weight | 1.1 lbs (499 g) |
MPN
ZFV-SC90
