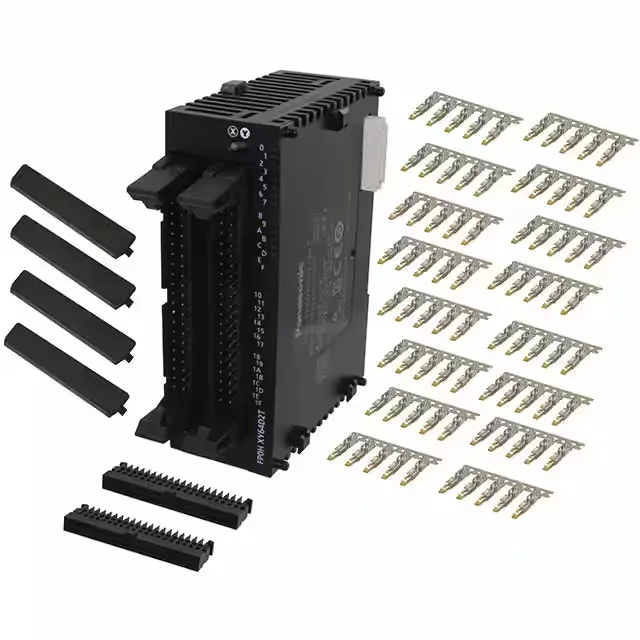

Panasonic FP0H series, AFP0HXY64D2P Input/Output Module, 32 digital inputs and 32 solid state outputs, 5-24VDC supply, DIN rail mount, CE approved.
| Parameter | Value |
|---|---|
| Series | FP0H |
| Type | Input, Output (I/O) Module |
| Compatible with | FP0H Series |
| Parameter | Value |
|---|---|
| Outputs and output technology | 32 - Solid State |
| Parameter | Value |
|---|---|
| Operating temperature range | 0°C~55°C |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Parameter | Value |
|---|---|
| Approvals / certifications | CE |
| Parameter | Value |
|---|---|
| Supply voltage | 5 ~ 24VDC |
| Number of inputs and type | 32 - Digital |
Panasonic AFP0HXY64D2P I/O module provides 32 digital inputs and 32 solid-state outputs for the FP0H series, on DIN-rail mount. Supply range 5 to 24 VDC.
Mounts on standard DIN rail within the FP0H backplane. Operating range 0 to 55 °C suits cabinet environments without forced cooling. Solid-state outputs offer faster switching than relay and no contact wear, but need free-wheeling diodes for inductive loads—plan the external suppression.
Both share the same I/O count, supply range, and FP0H series. The termination style may differ, so verify connector compatibility before swapping.
