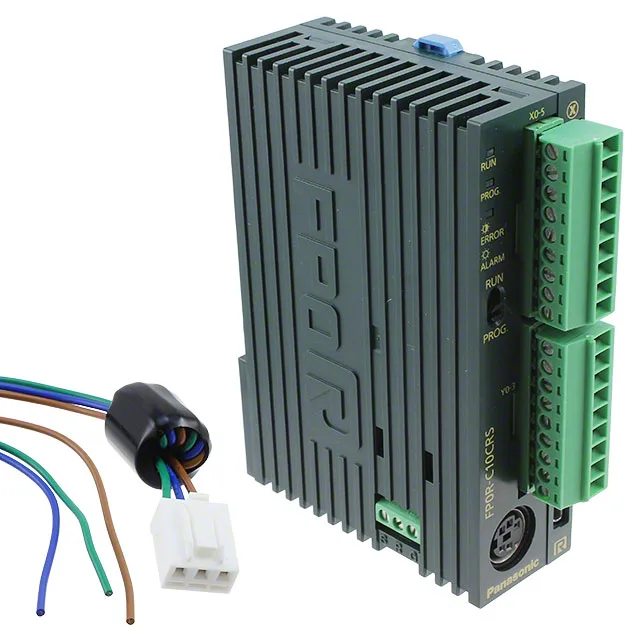

Panasonic Industrial AFP0RC10CRS — PLCs (Programmable Logic Controllers)

Panasonic AFP0RC10CRS FP0R PLC CPU, 6 In 4 Out Relay, 24VDC

MPNAFP0RC10CRS
Active

Panasonic FP0R series PLC CPU, AFP0RC10CRS, 6 digital inputs, 4 relay outputs, 24 VDC, RS-232C, DIN-rail mount, CE, cULus.

$200.91 – $221.00Ref. price · indicative, final on quote
Panasonic Industrial AFP0RC10CRS datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

AFP0RC10CRS — Identification
ParameterValue
SeriesFP0R
AFP0RC10CRS — I/O
ParameterValue
Inputs (count and type)6 - Digital
Outputs (count and type)4 - Relay
Expandable3 Modules Max
AFP0RC10CRS — Electrical
ParameterValue
Supply voltage24VDC
AFP0RC10CRS — Environmental
ParameterValue
Operating temperature range0°C~55°C
AFP0RC10CRS — Mechanical
ParameterValue
Mounting typeDIN Rail
AFP0RC10CRS — Approvals
ParameterValue
Approvals / certificationsCE, cULus
AFP0RC10CRS — Other specifications
ParameterValue
SoftwareFPWINPRO7
Memory size12K Words
Display typeNo Display
CommunicationsRS-232C

Product details

The Panasonic AFP0RC10CRS is a compact FP0R series PLC CPU with 6 digital inputs and 4 relay outputs, running on a 24 VDC supply. It includes an RS-232C communication port and is expandable to three additional modules, with 12K words of program memory. The unit is DIN-rail mounted and carries CE and cULus approvals, per the datasheet.

I/O and expansion constraints

Six digital inputs and four relay outputs define the onboard I/O count. Expansion is limited to three modules.

Frequently asked questions

What is the closest functional second-source to the AFP0RC10CRS?

The AFP0RC10RS is a peer in the same FP0R series with identical I/O count (6 inputs, 4 relay outputs), memory, supply voltage, and approvals. The key difference is that the AFP0RC10CRS includes an RS-232C port, while the AFP0RC10RS does not. If RS-232C communication is not required, the AFP0RC10RS is a drop-in replacement for the relay output and I/O configuration.

What series does the AFP0RC10CRS belong to?

The AFP0RC10CRS is part of the Panasonic FP0R series of compact PLC CPUs.

What is the package type for the AFP0RC10CRS?

The AFP0RC10CRS is packaged in Bulk, meaning it is supplied as a single unit without retail packaging.

Will the AFP0RC10CRS drop into a panel specified around the AFP0RC10RS without rewiring?

Yes, the AFP0RC10CRS shares the same I/O count (6 digital inputs, 4 relay outputs), supply voltage (24 VDC), mounting (DIN rail), and overall footprint as the AFP0RC10RS. The only difference is the addition of an RS-232C port on the CRS variant, which does not affect the wiring of the I/O or power terminals. No rewiring is needed for the I/O or power connections.

What compliance documentation does Panasonic provide for the AFP0RC10CRS?

The AFP0RC10CRS carries CE and cULus approvals. RoHS and REACH compliance statements are not included in this listing; contact Panasonic or your distributor for the manufacturer's declaration if those are required.
