Panasonic Industrial AFP0RC14CRS — PLCs (Programmable Logic Controllers)

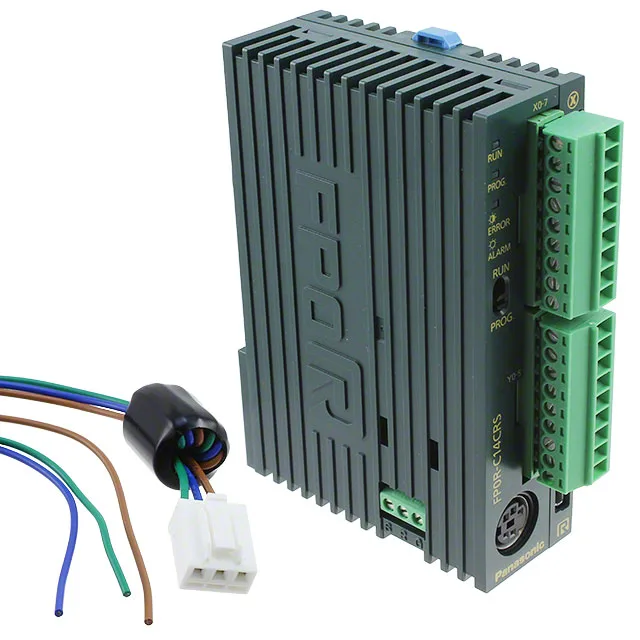

Panasonic AFP0RC14CRS FP0R PLC, 8 Digital In, 6 Relay Out, 2

MPNAFP0RC14CRS
Active

Panasonic FP0R series, AFP0RC14CRS, compact PLC, 8 digital inputs, 6 relay outputs, 24 VDC, RS-232C, DIN rail mount, CE, cULus.

$217.27 – $239.00Ref. price · indicative, final on quote
Panasonic Industrial AFP0RC14CRS datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

AFP0RC14CRS — Identification
ParameterValue
SeriesFP0R
AFP0RC14CRS — I/O
ParameterValue
Inputs (count and type)8 - Digital
Outputs (count and type)6 - Relay
Expandable3 Modules Max
AFP0RC14CRS — Electrical
ParameterValue
Supply voltage24VDC
AFP0RC14CRS — Environmental
ParameterValue
Operating temperature range0°C~55°C
AFP0RC14CRS — Mechanical
ParameterValue
Mounting typeDIN Rail
AFP0RC14CRS — Approvals
ParameterValue
Approvals / certificationsCE, cULus
AFP0RC14CRS — Other specifications
ParameterValue
SoftwareFPWINPRO7
Memory size12K Words
Display typeNo Display
CommunicationsRS-232C

Product details

The AFP0RC14CRS: RS-232C is the onboard serial port, which means direct connection to older HMIs or barcode scanners without an add-on module. Memory is 12K words — enough for a small machine sequence with a few dozen rungs, but you'll bump into the ceiling if you're doing recipe arrays or data logging. Expandable to three additional modules via the side bus, so you can add analog I/O or a second serial port. CE and cULus approved. DIN-rail mount. No display; programming via FPWINPRO7.

Frequently asked questions

What is the closest functional alternative to the AFP0RC14CRS?

The AFP0RC14CRT14 is nearly identical — same I/O count, same relay outputs, same expandability — but runs on 12 VDC instead of 24 VDC. If your panel already has a 24 V supply, stick with the CRS. The AFP0RC14RS drops the RS-232C port, so if you need serial comms, the CRS is the one.

Will the AFP0RC14CRS drop into a panel wired for the AFP0RC14CRT14?

Mechanically yes — same DIN-rail footprint, same I/O layout. But the CRT14 runs on 12 VDC, so you'd need to swap the power supply or rewire the 24 VDC feed. The relay outputs and input wiring are identical.

MPN
AFP0RC14CRS
