Panasonic Industrial AFP0RC14RS — PLCs (Programmable Logic Controllers)

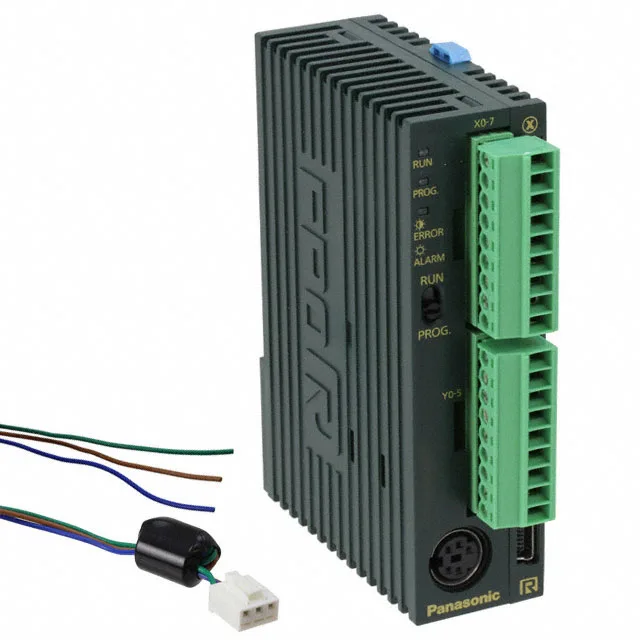

Panasonic AFP0RC14RS FP0R Control Logic, 8 In 6 Out 24V

MPNAFP0RC14RS
Active

Panasonic FP0R series, AFP0RC14RS, control logic CPU, 8 digital inputs, 6 relay outputs, 24 VDC, DIN rail mount, bulk pack.

$185.46 – $499.92Ref. price · indicative, final on quote
Panasonic Industrial AFP0RC14RS datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

AFP0RC14RS — Identification
ParameterValue
SeriesFP0R
AFP0RC14RS — I/O
ParameterValue
Inputs (count and type)8 - Digital
Outputs (count and type)6 - Relay
Expandable3 Modules Max
AFP0RC14RS — Electrical
ParameterValue
Supply voltage24VDC
AFP0RC14RS — Environmental
ParameterValue
Operating temperature range0°C~55°C
AFP0RC14RS — Mechanical
ParameterValue
Mounting typeDIN Rail
AFP0RC14RS — Approvals
ParameterValue
Approvals / certificationsCE, cULus
AFP0RC14RS — Other specifications
ParameterValue
SoftwareFPWINPRO7
Memory size12K Words
Display typeNo Display

Product details

PLC CPU for small-machine control

The Panasonic AFP0RC14RS is a compact FP0R-series PLC CPU with 8 digital inputs and 6 relay outputs, running on 24 VDC. It stores 12K words of program memory and can be expanded with up to three additional I/O modules, making it a fit for standalone machine control or a small cell within a larger line. Relay outputs handle up to 2 A per point typical for the FP0R family — suitable for direct switching of contactors, solenoids, and indicator lamps without external interposing relays. The 24 VDC supply is common across the FP0R range, so a single 24 V bus powers the CPU and expansion modules.

Panel fit and I/O count

Compared to the AFP0RC10RS (6 digital inputs, 4 relay outputs), the AFP0RC14RS adds two inputs and two relay outputs in the same FP0R footprint. If a panel was originally wired for the 10RS, the 14RS drops into the same DIN-rail slot and backplane — no rewiring needed for the existing I/O points; the extra two inputs and two outputs are simply available on the same terminal block layout.

Approvals and documentation

CE and cULus approvals are listed. The FP0R series is programmed via Panasonic's FPWINPRO7 software.

Frequently asked questions

What is the closest functional second-source to AFP0RC14RS?

The AFP0RC10RS is the closest peer in the same FP0R series: same 24 VDC supply, same 12K-word memory, same expandability to 3 modules. The difference is I/O count — the 10RS has 6 digital inputs and 4 relay outputs versus the 14RS's 8 inputs and 6 relay outputs. Both mount on DIN rail and share the same footprint.

Will AFP0RC14RS drop into a panel specified around AFP0RC10RS without rewiring?

Yes. Both are FP0R-series CPUs with the same DIN-rail mounting and terminal layout. The AFP0RC14RS uses the same backplane connector and power supply (24 VDC). The existing wiring for the 10RS's 6 inputs and 4 outputs maps directly; the extra two inputs and two outputs on the 14RS are additional terminals on the same connector — no rewiring of existing circuits is required.
