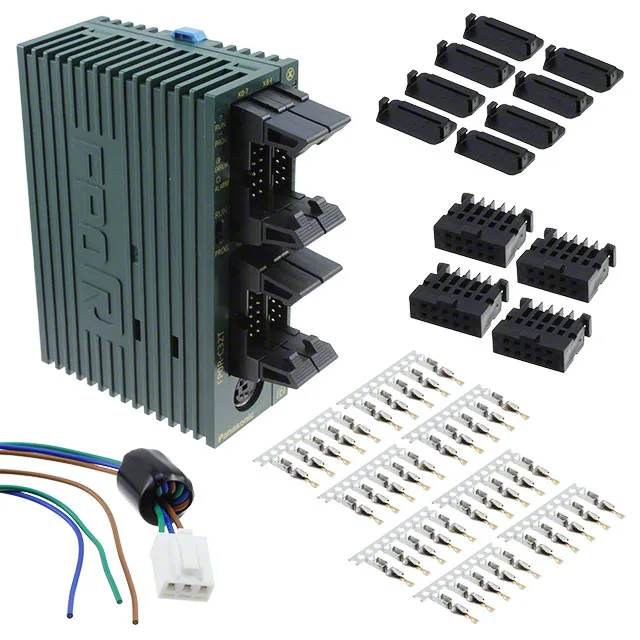

Panasonic FP0R series, Control Logic module, AFP0RC32P: 16 digital inputs, 4 pulse, 4 PWM, 8 solid-state outputs, 24VDC supply, 32K words memory, DIN rail mount, Box package.
| Parameter | Value |
|---|---|
| Series | FP0R |
| Parameter | Value |
|---|---|
| Inputs (count and type) | 16 - Digital |
| Outputs (count and type) | 16 - Pulse (4), PWM (4), Solid State (8) |
| Parameter | Value |
|---|---|
| Operating temperature range | 0°C~55°C |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Parameter | Value |
|---|---|
| Approvals / certifications | CE, cULus |
| Parameter | Value |
|---|---|
| Software | FPWINPRO7 |
| Expandable | 3 Modules Max |
| Memory size | 32K Words |
| Display type | No Display |
| Supply voltage | 24VDC |
The Panasonic AFP0RC32P is a FP0R series control logic module delivering 16 digital inputs and a mixed output bank of 4 pulse, 4 PWM, and 8 solid-state channels, all powered at 24VDC. It programs via FPWINPRO7 software and expands up to three additional modules on the same backplane.
DIN rail mount, 16 digital inputs and 16 mixed outputs, expandable to 3 modules, 32K words memory.
Yes, AFP0RC32P and AFP0RC32T are functionally identical — same I/O count, supply voltage, memory, and physical dimensions. The only difference is package: AFP0RC32P is Box, AFP0RC32T is Bulk. Wiring and panel layout are interchangeable.
AFP0RC32P is part of the Panasonic FP0R series.
