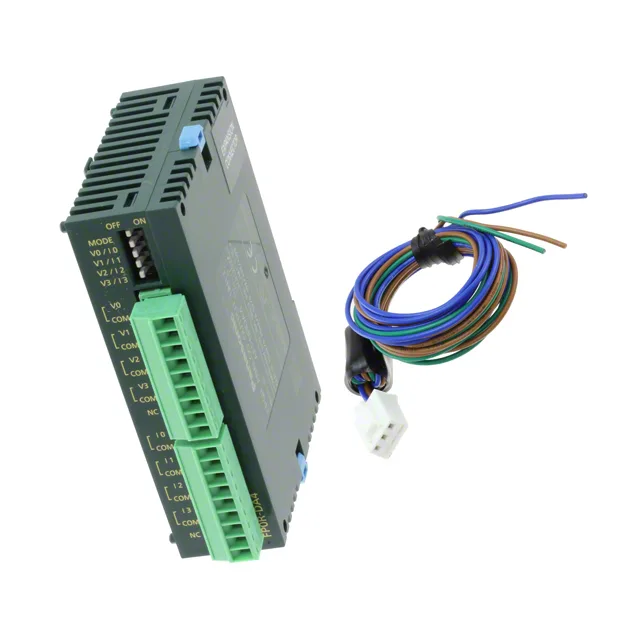

Panasonic FP0R series, Analog Output Unit, 4 channels, DIN rail mount, CE, cULus.
| Parameter | Value |
|---|---|
| Type | Output Module |
| Series | FP0R |
| Mounting | DIN Rail |
| Approval agency | CE, cULus |
| Number of outputs and type | 4 - Analog |
The AFP0RDA4 is a 4-channel analog output module in the Panasonic FP0R series, designed to generate control signals for drives, valves, or chart recorders from a PLC backplane.
The module is intended for use with FP Series PLCs. It occupies one slot on the DIN-rail-mounted backplane and provides four analog output channels. No special tooling or adapter is required beyond the standard FP0R bus connector.
The AFP0RAD4 is the closest peer — same FP0R series, same DIN-rail footprint, same agency approvals — but it is an input module (4 analog inputs), not an output module. It will not drop into a panel wired for outputs without rewiring the field terminations and reconfiguring the PLC mapping.
The module is CE and cULus approved. These marks cover the safety and EMC requirements for installation in the European Union and North America. RoHS and REACH declarations are typically available from the manufacturer for the FP0R series.
