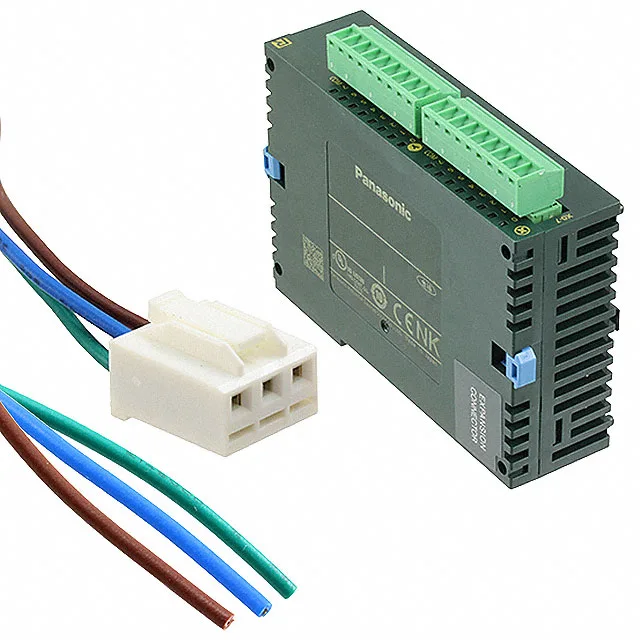

Panasonic Industrial AFP0RE16RS

Panasonic AFP0RE16RS FP0R I/O Module, 8 Digital In, 8 Relay

MPN AFP0RE16RS
Active

Panasonic FP0R series, AFP0RE16RS I/O module, 8 digital inputs, 8 relay outputs, DIN rail mount, pluggable screw terminal.

$196.98 – $238.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

AFP0RE16RS specifications
ParameterValue
SeriesFP0R
Product typeInput, Output (I/O) Module
MountingDIN Rail
Temp operating max55 °C
Temp operating min0 °C
PackageBulk

Product details

The Panasonic AFP0RE16RS is an I/O module in the FP0R series, combining 8 digital inputs with 8 relay outputs in one DIN-rail-mount package. The relay outputs handle higher current and inductive loads than solid-state alternatives, making this the choice when you need to switch small motors, contactors, or valves directly from the PLC without an interposing relay. The pluggable screw terminals mean the wiring stays in the panel when you swap the module — a time-saver during commissioning or a line-down swap.

The 8 digital inputs accept 24 VDC field wiring typical of proximity sensors, limit switches, and pushbuttons. The 8 relay outputs are rated for the FP0R series relay load — they give you isolation between the PLC backplane and the field, and they handle inrush from small inductive loads without the derating a transistor output would need.

Integration note

Mounts on standard DIN rail. The pluggable screw terminal block accepts 0.2–2.5 mm² wire; strip length around 8 mm. The module connects to the FP0R backplane via the series' internal bus — no fieldbus addressing required for the I/O itself. Relay output commons are typically grouped; check the terminal layout in the manual to plan your load wiring.

MPN
AFP0RE16RS
