Panasonic Industrial AFP0RE32T

Panasonic AFP0RE32T FP0R I/O Module, 16 Digital Inputs, 16 S

MPN AFP0RE32T
Active

Panasonic FP0R series, Input/Output (I/O) Module, AFP0RE32T, 16 digital inputs, 16 solid-state outputs, DIN-rail mount, rectangular connector.

$216.37 – $238.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

AFP0RE32T specifications
ParameterValue
SeriesFP0R
Product typeInput, Output (I/O) Module
MountingDIN Rail
Temp operating max55 °C
Temp operating min0 °C
PackageBulk

Product details

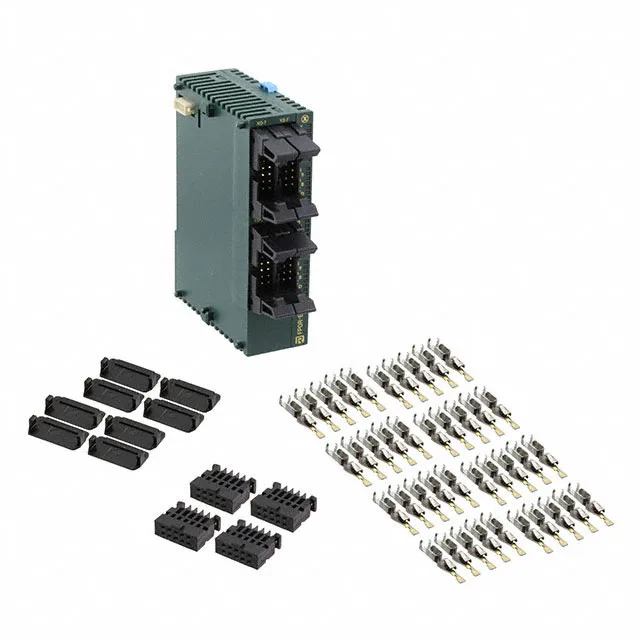

The Panasonic AFP0RE32T is a mixed I/O module in the FP0R series, combining 16 digital inputs and 16 solid-state outputs in a single DIN-rail-mount package. It terminates via a rectangular connector — no screw terminals on the module itself; the mating harness or terminal block is ordered separately. This is the kind of module that sits in a control cabinet as a remote or local I/O slice for a FP0R CPU, handling discrete sensors and small actuator loads without needing a separate input and output module.

Sixteen digital inputs and sixteen solid-state outputs — that is a 32-point module in a single slot. The solid-state outputs mean no mechanical relay wear, so it suits high-cycle applications like pick-and-place or packaging lines where relay contacts would fatigue. DIN-rail mounting keeps the module aligned with the rest of the FP0R rack — no panel drilling, just snap it on.

MPN
AFP0RE32T
