Panasonic Industrial AFP0RE8RS — PLC I/O & Expansion Modules

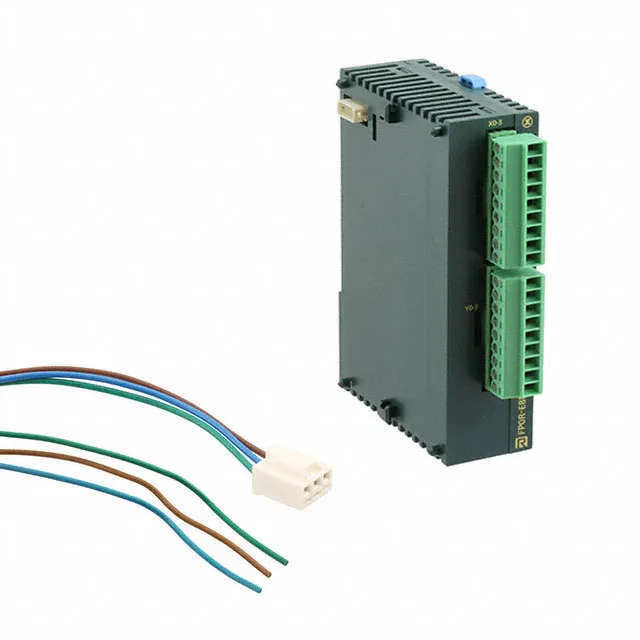

Panasonic AFP0RE8RS FP0R I/O Module, 4 Digital In / 4 Relay

MPNAFP0RE8RS
Active

Panasonic FP0R series, Input, Output (I/O) Module, AFP0RE8RS, 4 digital inputs, 4 relay outputs, DIN-rail mount, pluggable screw terminal, 0–55°C.

$162.73 – $179.00Ref. price · indicative, final on quote
Panasonic Industrial AFP0RE8RS datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

AFP0RE8RS — Identification
ParameterValue
SeriesFP0R
TypeInput, Output (I/O) Module
Compatible / related productsFP0R Series
AFP0RE8RS — I/O
ParameterValue
Inputs (count and type)4 - Digital
Outputs (count and type)4 - Relay
AFP0RE8RS — Environmental
ParameterValue
Operating temperature range0°C~55°C
AFP0RE8RS — Mechanical
ParameterValue
Termination stylePluggable Screw Terminal
Mounting typeDIN Rail

Product details

The Panasonic AFP0RE8RS is an FP0R-series I/O module packing four digital inputs and four relay outputs in a single DIN-rail-mount housing. Termination is via pluggable screw terminals, so the module can be swapped without disturbing field wiring — a real time-saver during commissioning or a fast swap.

Designed for the FP0R series — mates with the same backplane and bus architecture. The four relay outputs handle AC or DC loads up to the relay rating, giving you isolation per channel; the four digital inputs are for dry-contact or 24 VDC sensor signals. DIN-rail mounting and pluggable screw terminals mean it drops into a standard panel without drilling or special tools.

Frequently asked questions

What is the closest functional alternative — AFP0RE8YRS?

The AFP0RE8YRS is a relay-output-only module (8 relay outputs, no digital inputs). It shares the same FP0R series, DIN-rail mount, and pluggable screw terminals, so it fits the same backplane and wiring scheme, but it replaces the mixed I/O with a pure output block.

Will AFP0RE8RS drop into a panel wired for AFP0RE8YRS without rewiring?

Yes — same series, same mounting, same terminal style. The input wiring on the AFP0RE8RS simply occupies the first four terminal positions that would be unused or differently assigned on the AFP0RE8YRS.

What compliance documentation does Panasonic provide for AFP0RE8RS?

The evidence does not list specific certifications (RoHS, REACH, UL, IEC) for this order code. Compliance documentation should be requested as part of the RFQ process.

MPN
AFP0RE8RS
