Panasonic Industrial AFP0RE8YRS — Digital Output Modules

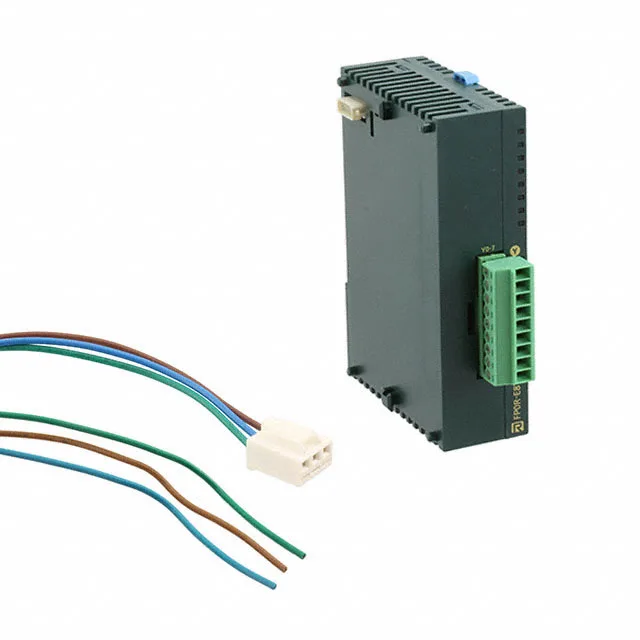

Panasonic AFP0RE8YRS Output Module, 8 Relay, DIN Rail, Plugg

MPNAFP0RE8YRS
Active

Panasonic FP0R series, Output Module, AFP0RE8YRS, 8 relay outputs, DIN Rail mount, Pluggable Screw Terminal, 0°C~55°C.

$162.73 – $179.00Ref. price · indicative, final on quote
Panasonic Industrial AFP0RE8YRS datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

AFP0RE8YRS — Identification
ParameterValue
SeriesFP0R
TypeOutput Module
Compatible withFP0R Series
AFP0RE8YRS — Outputs
ParameterValue
Outputs and output technology8 - Relay
AFP0RE8YRS — Environmental
ParameterValue
Operating temperature range0°C~55°C
AFP0RE8YRS — Mechanical & Connection
ParameterValue
Mounting typeDIN Rail
Termination stylePluggable Screw Terminal

Product details

The AFP0RE8YRS is an FP0R-series output module from Panasonic, packing eight relay outputs into a DIN-rail-mount package with pluggable screw terminals. It's the go-to slice when you need isolated, high-current switching — relays handle inductive loads like contactor coils and small motors without the fuss of external snubbers. Rated for 0°C to 55°C, it lives comfortably in a standard control cabinet without forced cooling. The pluggable screw terminals mean you can pre-wire the harness and snap the module in during commissioning — saves time when the line's waiting.

Wiring and Fit

The pluggable screw terminal accepts 0.2–2.5 mm² wire, ferruled or solid. Strip length 8 mm — standard for the FP0R backplane. Each relay output is isolated from the bus; commoning the load side is up to you. The module snaps onto the DIN rail and connects to the FP0R expansion bus via the integral connector — no separate cabling needed.

Frequently asked questions

What is the closest functional alternative to the AFP0RE8YRS?

The AFP0RE8YT is the closest peer — same FP0R series, same 8-output count and DIN-rail mount, but uses solid-state outputs instead of relays. If you need relay isolation and contact rating, stick with the AFP0RE8YRS; if you want faster switching and no mechanical wear, the AFP0RE8YT is a drop-in replacement for the form factor but not the output type.

Will the AFP0RE8YRS drop into a panel wired for the AFP0RE8YT?

Mechanically yes — both are FP0R-series DIN-rail modules with the same footprint and bus connector. Electrically, no — the AFP0RE8YRS uses relay outputs, so the wiring is the same pin-for-pin, but the load type and current rating differ. Verify the load current and whether you need dry contacts (relay) vs. solid-state switching.

What compliance documentation does Panasonic provide for the AFP0RE8YRS?

The FP0R series typically carries CE marking. Specific RoHS, REACH, and UL documentation should be requested with the RFQ — these are not listed in the standard spec sheet.
