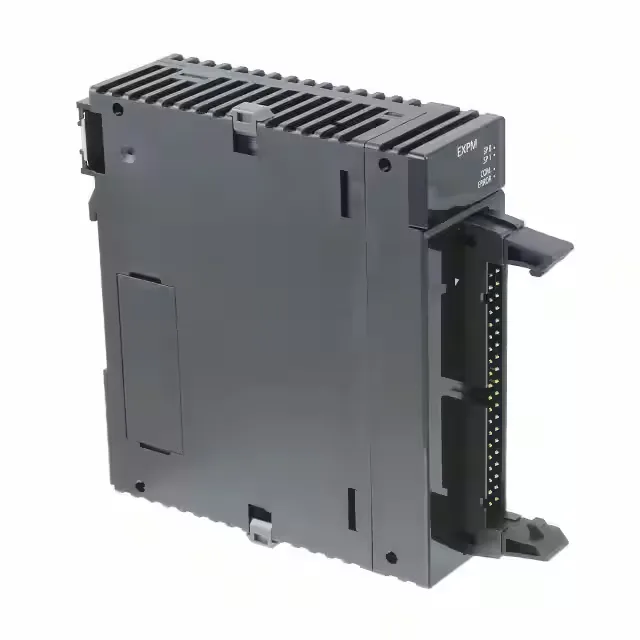

Panasonic FP7 series, AFP7EXPM Control Module, DIN Rail mount, rectangular connector, 0°C~55°C operation.
| Parameter | Value |
|---|---|
| Series | FP7 |
| Parameter | Value |
|---|---|
| Operating temperature range | 0°C~55°C |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Weight | 0.265 lb (120.2 g) |
| Termination style | Rectangular Connector |
| Parameter | Value |
|---|---|
| Type | Control Module |
The AFP7EXPM is a Control Module within the FP7 series of programmable automation controllers.
The AFP7EXPM is notably listed as a Control Module, whereas the AFP7EXPS is an Interface Module within the same FP7 family. Both share DIN rail mounting, rectangular connectors, and the 0°C~55°C range. If your panel was built around an AFP7EXPS, the AFP7EXPM will physically fit and wire, but the functional role differs—control versus interface—so verify the system configuration before swapping.
The AFP7EXPS is a peer in the same FP7 series, but it is an Interface Module rather than a Control Module. Both share the same mechanical and environmental specifications, but the functional difference means they are not direct drop-in replacements. Confirm the system configuration before substituting.
The AFP7EXPM is a Control Module in the FP7 series.
Physically yes—both use the same DIN rail mount and rectangular connector, and share the 0°C~55°C operating temperature. However, the AFP7EXPM is a Control Module while the AFP7EXPS is an Interface Module, so functional compatibility must be checked against the system design.
