Panasonic Industrial AFP7MXY32DWD — PLC I/O & Expansion Modules

Panasonic AFP7MXY32DWD FP7 I/O Module, 16 DI/16 DO

MPNAFP7MXY32DWD
Active

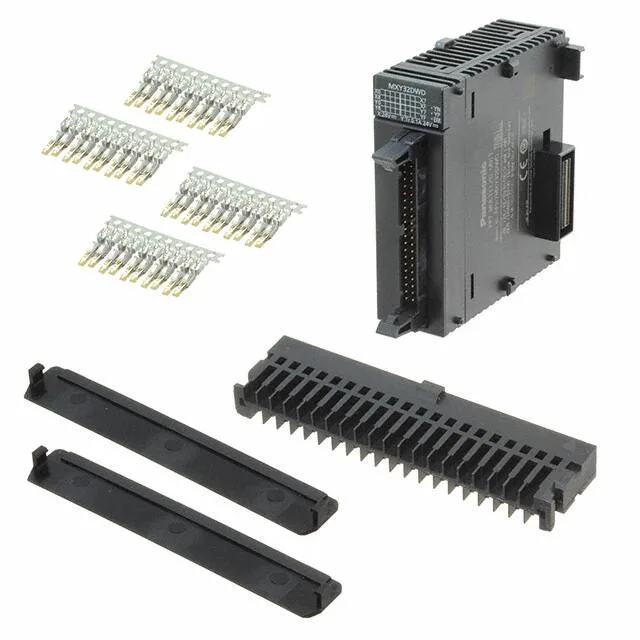

Panasonic FP7 mixed I/O module, AFP7MXY32DWD, 16 digital inputs + 16 solid state outputs, DIN rail mount, rectangular connector.

$308.75 – $345.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

AFP7MXY32DWD — Identification
ParameterValue
SeriesFP7
TypeInput, Output (I/O) Module
Compatible / related productsFP7 Series
AFP7MXY32DWD — I/O
ParameterValue
Inputs (count and type)16 - Digital
Outputs (count and type)16 - Solid State
AFP7MXY32DWD — Environmental
ParameterValue
Operating temperature range0°C~55°C
AFP7MXY32DWD — Mechanical
ParameterValue
Termination styleRectangular Connector
Mounting typeDIN Rail

Product details

vs AFP7X16DW input-only module

The AFP7X16DW gives you 16 digital inputs and nothing else — no outputs. If the BOM calls for both I/O directions on one card, the AFP7MXY32DWD saves a slot. Wiring difference: the AFP7X16DW uses pluggable screw terminals; this module uses a rectangular connector. Same backplane, different dressing. For a pure input bank the AFP7X16DW is cheaper, but if you need outputs on the same slice this is the one.

Production status is active. No end-of-life notice or PCN on record for this FP7 I/O module. The module fits any FP7 rack and is a current-production item, so it's straightforward to quote for BOM lines.

Frequently asked questions

What is AFP7MXY32DWD's listed type?

It is an Input, Output (I/O) Module.

What series does AFP7MXY32DWD belong to?

It is part of the FP7 series.

Will AFP7MXY32DWD drop into a panel specified around AFP7EXPS without rewiring?

No. AFP7EXPS is an interface module (not an I/O module). They serve different roles in the FP7 system; the AFP7MXY32DWD requires a different backplane slot and wiring for inputs and outputs.

MPN
AFP7MXY32DWD
