Panasonic Industrial AFP7PSA1 — PLCs (Programmable Logic Controllers)

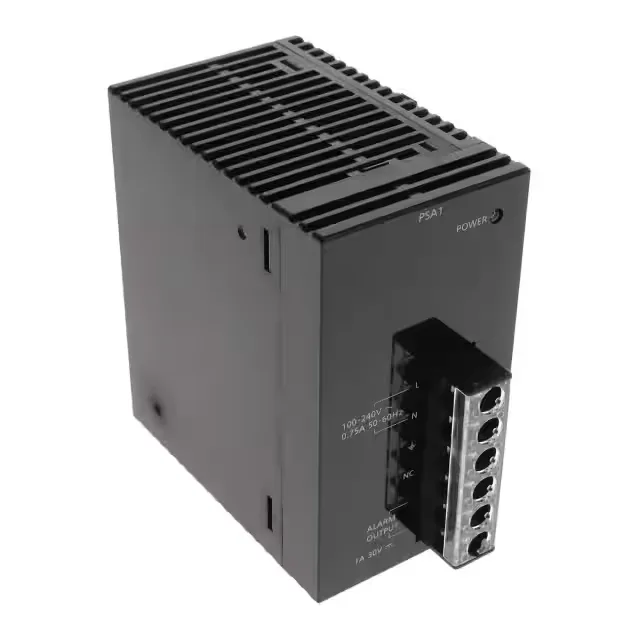

Panasonic AFP7PSA1 FP7 Power Supply, 24VDC 1.0A

MPNAFP7PSA1

Active

Panasonic FP7 Series, Power Supply Module, AFP7PSA1, 100-240VAC input, 24VDC 1.0A output, DIN Rail, Screw Terminal.

$433.36Ref. price · indicative, final on quote

Add to RFQ

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

AFP7PSA1 — Identification
Parameter	Value
Series	FP7

AFP7PSA1 — Electrical
Parameter	Value
Supply voltage	100 ~ 240VAC

AFP7PSA1 — Environmental
Parameter	Value
Operating temperature range	0°C~55°C

AFP7PSA1 — Mechanical
Parameter	Value
Mounting type	DIN Rail
Weight	0.529 lb (239.95 g)
Termination style	Screw Terminal

AFP7PSA1 — Other specifications
Parameter	Value
Type	Power Supply Module
Features	Output Capacity (24VDC, 1.0A)

Product details

The AFP7PSA1 is the entry-level 24 VDC power supply for the FP7 PLC rack. It delivers 1.0 A from a 100–240 VAC input and mounts on DIN rail with screw terminals. That 1.0 A rail must cover the total current draw of the CPU, I/O modules, and any expansion units — if your loaded rack exceeds that, step up to the AFP7PSA2 which provides 1.8 A in the same footprint.

Where to land the BOM line

Physically identical to the AFP7PSA2, the AFP7PSA1 delivers 1.0 A. Use the AFP7PSA2 when backplane draw exceeds 1.0 A.

Frequently asked questions

Will AFP7PSA1 drop into a panel originally specified for AFP7PSA2?

Yes, both modules share the same DIN rail mounting, screw terminals, and 100–240VAC input. The only difference is output current: the AFP7PSA1 supplies 1.0A vs 1.8A. As long as the total load does not exceed 1.0A, it is a physical and electrical match.
