Panasonic Industrial AFP7XY64D2T — PLC I/O & Expansion Modules

Panasonic AFP7XY64D2T FP7 I/O Module, 32 Digital Inputs, 32

MPNAFP7XY64D2T
Active

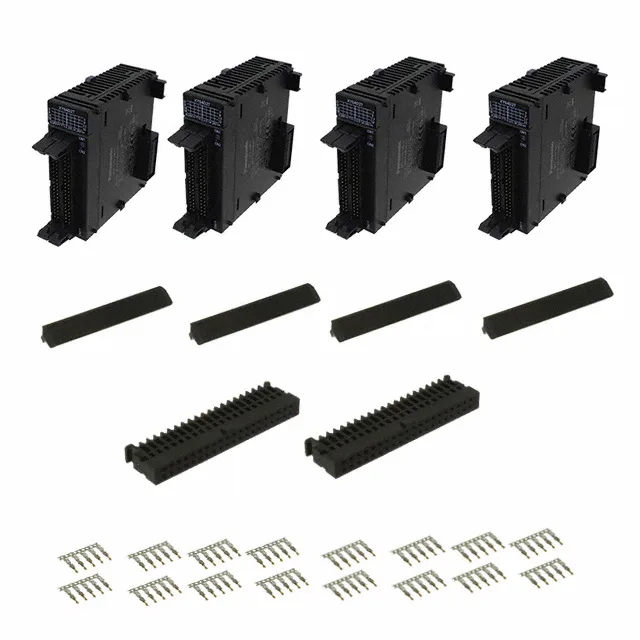

Panasonic FP7 Series, I/O Module, AFP7XY64D2T, 32 Digital Inputs, 32 Solid State Outputs, DIN Rail Mount, Rectangular Connector.

$170.00 – $393.97Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

AFP7XY64D2T — Identification
ParameterValue
SeriesFP7
TypeInput, Output (I/O) Module
Compatible / related productsFP7 Series
AFP7XY64D2T — I/O
ParameterValue
Inputs (count and type)32 - Digital
Outputs (count and type)32 - Solid State
AFP7XY64D2T — Environmental
ParameterValue
Operating temperature range0°C~55°C
AFP7XY64D2T — Mechanical
ParameterValue
Termination styleRectangular Connector
Mounting typeDIN Rail
AFP7XY64D2T — Other specifications
ParameterValue
Weight0.254 lb (115.21 g)

Product details

The AFP7XY64D2T is a combined I/O module for the Panasonic FP7 series, with 32 digital inputs and 32 solid-state outputs. It mounts on DIN rail and uses a rectangular connector.

The AFP7X32D2 is a 32-input-only module; the AFP7Y32T is 32-output-only. The AFP7XY64D2T combines both in one housing, saving one slot on the rack and one part number in the BOM.

Lifecycle status is active. No end-of-life notice on record.

Mounts on standard DIN rail. Operating range is 0°C to 55°C. The rectangular connector carries all I/O; inputs are 32-point digital; outputs are solid-state.

Frequently asked questions

What is the type and series of AFP7XY64D2T?

It is an Input, Output (I/O) Module in the FP7 series.

Will AFP7XY64D2T drop into a panel wired for AFP7X32D2?

No. The AFP7X32D2 is an input-only module; the AFP7XY64D2T has both inputs and outputs and occupies a different slot on the FP7 backplane. The rectangular connector pinout is specific to the module type, so you cannot simply swap one for the other without rewiring the connector or changing the I/O map.

MPN
AFP7XY64D2T
