Panasonic Industrial AFP7Y16R — Digital Output Modules

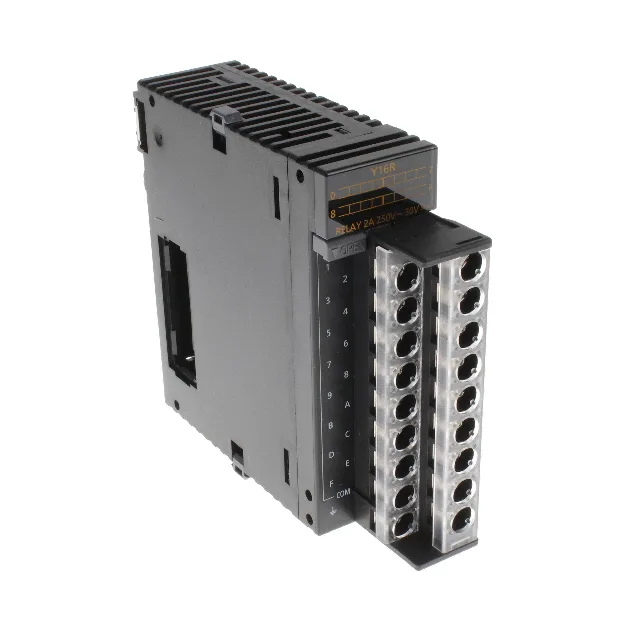

AFP7Y16R Output Module, 16 Relay, DIN Rail, FP7 Series

MPNAFP7Y16R
Active

Panasonic FP7 series output module, AFP7Y16R, 16 relay outputs, DIN-rail mount, pluggable screw terminal, 0°C to 55°C.

$231.82 – $334.84Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

AFP7Y16R — Identification
ParameterValue
SeriesFP7
TypeOutput Module
Compatible withFP7 Series
AFP7Y16R — Outputs
ParameterValue
Outputs and output technology16 - Relay
AFP7Y16R — Environmental
ParameterValue
Operating temperature range0°C~55°C
AFP7Y16R — Mechanical & Connection
ParameterValue
Mounting typeDIN Rail
Termination stylePluggable Screw Terminal
AFP7Y16R — Other specifications
ParameterValue
Weight0.397 lb (180.08 g)

Product details

The AFP7Y16R is a 16-point relay output module for the Panasonic FP7 PLC series.

Sixteen relay outputs provide isolated dry-contact switching per channel.

Lifecycle status is active. Source to order against an RFQ; lead time depends on current factory backlog.

Drop-in vs the solid-state siblings

The AFP7Y16T and AFP7Y16P are the 16-point solid-state (transistor) versions — same footprint, same DIN-rail mount, same pluggable screw terminal. If your panel was wired for the AFP7Y16T, the AFP7Y16R will physically snap into the same rail slot and the connector pattern is identical. The difference is the output type: relay gives you dry-contact isolation and handles AC or DC loads per point; transistor gives you faster switching (no mechanical wear) but needs a common supply polarity. No rewiring needed for the swap — just verify your load voltages are within the relay's rated range.

Frequently asked questions

Will the AFP7Y16R drop into a panel wired for the AFP7Y16T without rewiring?

Yes. Both modules share the same DIN-rail footprint and pluggable screw terminal layout. The connector pattern is identical, so you can swap the relay version in place of the transistor version without changing the field wiring. The difference is output type — relay gives isolated dry contacts for mixed AC/DC loads; transistor gives faster, solid-state switching with a common supply.

What is the AFP7Y16R's type and series?

It is an output module in the Panasonic FP7 series.

MPN
AFP7Y16R
