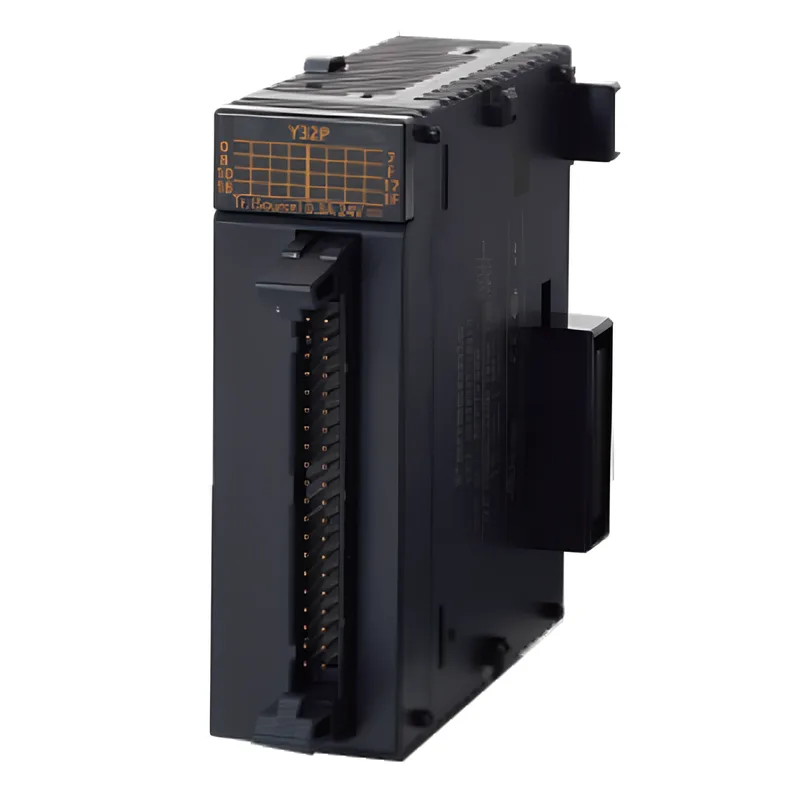

Panasonic FP7 series, Output Module, AFP7Y32P, 32 solid-state outputs, DIN-rail mount, rectangular connector.
| Parameter | Value |
|---|---|
| Series | FP7 |
| Type | Output Module |
| Compatible with | FP7 Series |
| Parameter | Value |
|---|---|
| Outputs and output technology | 32 - Solid State |
| Parameter | Value |
|---|---|
| Operating temperature range | 0°C~55°C |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Termination style | Rectangular Connector |
| Parameter | Value |
|---|---|
| Weight | 0.209 lb (94.8 g) |
The Panasonic AFP7Y32P is an output module in the FP7 series, delivering 32 solid-state outputs for high-density discrete control.
Compared to the AFP7Y32T, the AFP7Y32P shares the same 32 solid-state output count, DIN-rail footprint, and rectangular connector — the two are functionally interchangeable in a panel designed for either, with no rewiring needed. The AFP7XY64D2T combines 32 inputs with 32 outputs in a single module, which changes the I/O mapping and backplane power draw.
It is an Output Module with 32 solid-state outputs.
It is part of the Panasonic FP7 series.
Yes, both modules share the same output count, DIN-rail mount, and rectangular connector, so no rewiring is needed.
