The Panasonic AFPE214322 is a compact FP-E series control logic unit for standalone machine control. It runs on 24 VDC and packs 6 digital inputs plus 6 outputs in a mixed bag — 2 pulse/PWM, 1 relay, and 3 solid state. The LCD screen with tri-color backlight gives you local status at a glance, and the RS-485 port handles Modbus RTU chatter back to the main PLC or SCADA. Memory sits at 1.6K words, programmed with FPWINPRO7. Rated for 0 to 55 °C ambient and IP66, so it'll sit in a washdown panel or dusty cabinet without complaining.

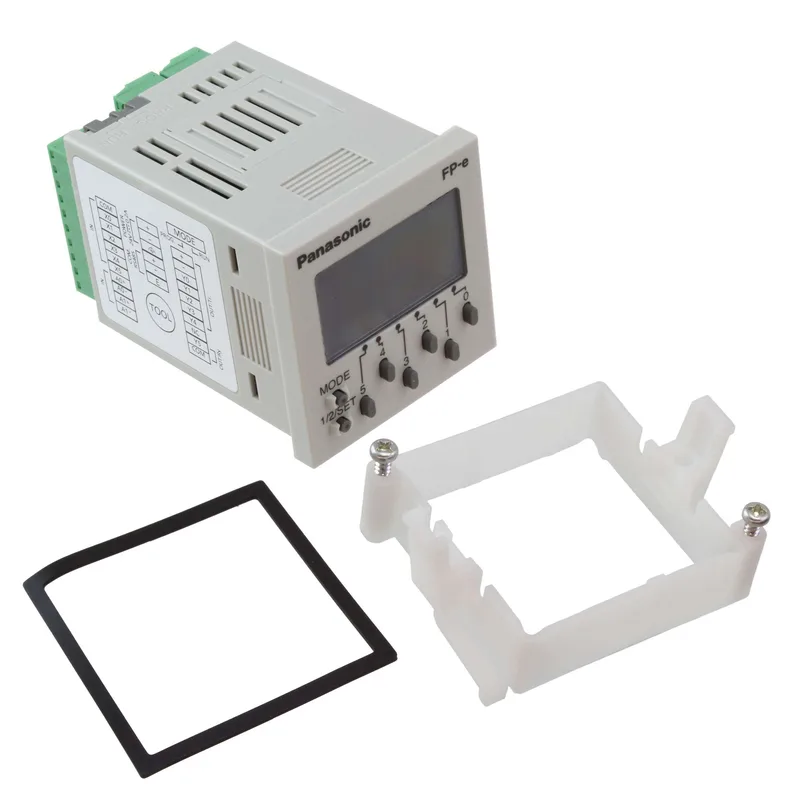

Panasonic AFPE214322 FP-E Control Logic, 24VDC, IP66
MPNAFPE214322
Active
Panasonic FP-E series, AFPE214322, control logic unit – 6 digital inputs, 6 mixed outputs, 24 VDC supply, RS-485, LCD tri-color backlit display, IP66 panel-mount enclosure.
$482.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | FP-E |
I/O
| Parameter | Value |
|---|---|
| Inputs (count and type) | 6 - Digital |
| Outputs (count and type) | 6 - Pulse/PWM (2), Relay (1), Solid State (3) |
| Expandable | Non-Expandable |
Electrical
| Parameter | Value |
|---|---|
| Supply voltage | 24VDC |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature range | 0°C~55°C |
Mechanical
| Parameter | Value |
|---|---|
| Mounting type | Panel Mount |
| Weight | 0.287 lb (130.18 g) |
Approvals
| Parameter | Value |
|---|---|
| Approvals / certifications | CE, cULus |
Other specifications
| Parameter | Value |
|---|---|
| Software | FPWINPRO7 |
| Memory size | 1.6K Words |
| Display type | LCD - Tri Color Characters, Backlight |
| Communications | RS-485 |
| IP rating | IP66 - Dust Tight, Water Resistant |
| Number of characters per row | 5, 5 |
Product details
Frequently asked questions
What serial communications does the AFPE214322 support?
It has one RS-485 port, suitable for Modbus RTU networking.
What approvals does the AFPE214322 carry?
It is CE and cULus approved.
