Panasonic Industrial AFPE214325 — PLCs (Programmable Logic Controllers)

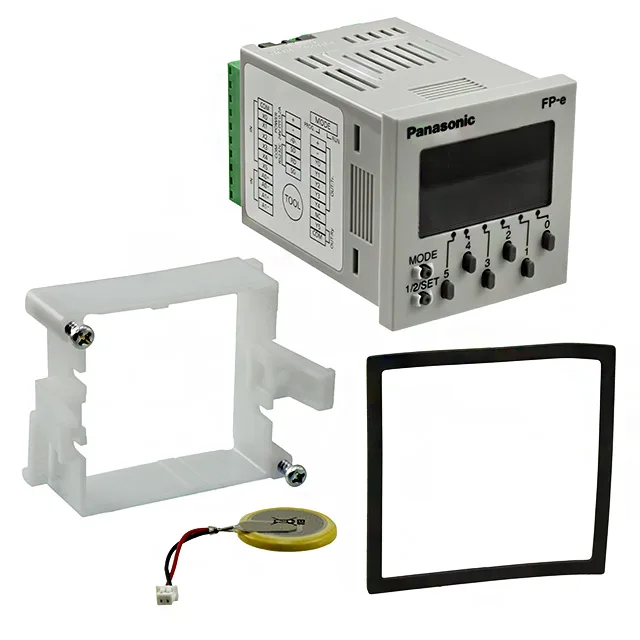

Panasonic AFPE214325 FP-E Control Logic, 6 In 6 Out 24VDC, Discontinued

MPNAFPE214325

Obsolete

Panasonic FP-E series control logic, order code AFPE214325, 6 digital inputs, 6 outputs (2 Pulse/PWM, 1 Relay, 3 Solid State), 24VDC supply, IP66 panel-mount, RS-232C, discontinued.

$728.93Ref. price · indicative, final on quote

Add to RFQ

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

AFPE214325 — Identification
Parameter	Value
Series	FP-E

AFPE214325 — I/O
Parameter	Value
Inputs (count and type)	6 - Digital
Outputs (count and type)	6 - Pulse/PWM (2), Relay (1), Solid State (3)
Expandable	Non-Expandable

AFPE214325 — Electrical
Parameter	Value
Supply voltage	24VDC

AFPE214325 — Environmental
Parameter	Value
Operating temperature range	0°C~55°C

AFPE214325 — Mechanical
Parameter	Value
Mounting type	Panel Mount
Weight	0.287 lb (130.18 g)

AFPE214325 — Approvals
Parameter	Value
Approvals / certifications	CE, cULus

AFPE214325 — Other specifications
Parameter	Value
Software	FPWINPRO7
Memory size	1.6K Words
Display type	LCD - Tri Color Characters, Backlight
Communications	RS-232C
IP rating	IP66 - Dust Tight, Water Resistant
Number of characters per row	5, 5

Product details

Panel Fit & I/O Configuration

This is a non-expandable controller with 6 digital inputs and a mixed output bank: 2 Pulse/PWM, 1 relay, and 3 solid-state outputs. The IP66 rating (dust tight, water resistant) allows panel-mount installation in washdown environments without an additional enclosure. The 24VDC supply is standard for industrial control panels.

Communication & Sibling Comparison

The AFPE214325 communicates via RS-232C. Its sibling AFPE214322 is identical in form factor, I/O count, and ratings but uses RS-485 instead. If your panel was wired for RS-485, the AFPE214325 will not drop in without a communication adapter or rewiring. The RS-232C variant suits point-to-point connections to a local HMI or programming terminal.
