Panasonic Industrial AFPE224300 — PLC Accessories

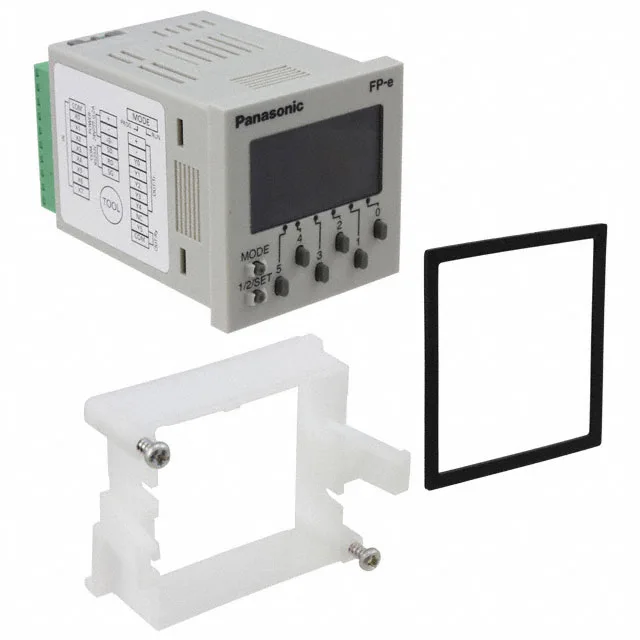

Panasonic AFPE224300 FP-E PLC, 24VDC, 8 Inputs, 6 Outputs, RS-232C, IP66

MPNAFPE224300
Obsolete

Panasonic FP-E series, AFPE224300, 24VDC PLC with 8 digital inputs, 6 mixed outputs (2 Pulse/PWM, 1 Relay, 3 Solid State), RS-232C, IP66, 1.6K Words memory, non-expandable.

$529.09Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

AFPE224300 — Mechanical
ParameterValue
Mounting typePanel Mount
AFPE224300 — Environmental
ParameterValue
Operating temperature range0°C~55°C
AFPE224300 — Other specifications
ParameterValue
SeriesFP-E
Weight0.287 lb (130.18 g)
SoftwareFPWINPRO7
ExpandableNon-Expandable
Memory size1.6K Words
Display typeLCD - Tri Color Characters, Backlight
CommunicationsRS-232C
Approval agencyCE, cULus
Supply voltage24VDC
IP ratingIP66 - Dust Tight, Water Resistant
Number of inputs and type8 - Digital
Number of outputs and type6 - Pulse/PWM (2), Relay (1), Solid State (3)
Number of characters per row5, 5

Product details

The AFPE224300 is officially discontinued by Panasonic. No direct replacement is listed; sourcing is through surplus or broker channels.

Panel Fit & Key Specs

Runs on 24VDC supply. 8 digital inputs and 6 outputs: 2 Pulse/PWM, 1 Relay, 3 Solid State. RS-232C communication. IP66-rated panel-mount enclosure, rated 0°C to 55°C. Non-expandable — I/O count is fixed.

Integration Notes

Panel mount, IP66. Weight 0.287 lb (130.18 g). Programmed via FPWINPRO7 software. LCD tri-color backlit display, 5 characters per row. CE and cULus approved.

MPN
AFPE224300
