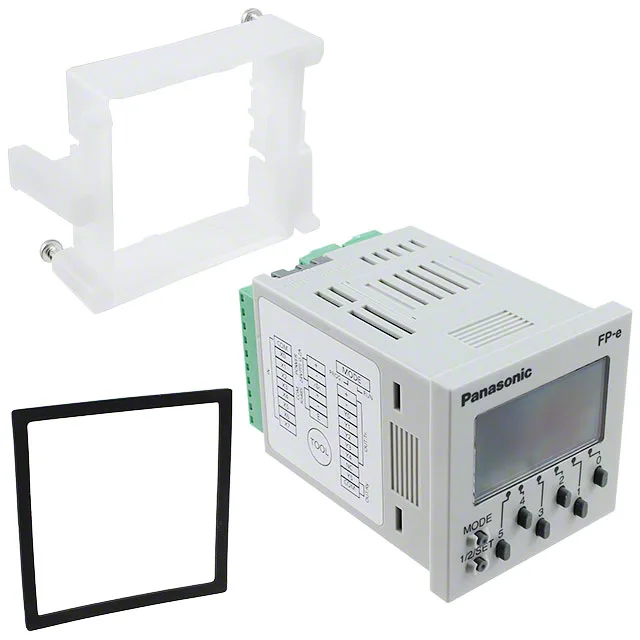

Panel-mount PLC with IP66 and mixed outputs
The AFPE224302 is a non-expandable FP-E series controller with 8 digital inputs and 6 outputs — 2 pulse/PWM, 1 relay, and 3 solid state — all running on 24 VDC. The IP66-rated panel-mount enclosure keeps it sealed against dust and water ingress, so it fits directly on a machine panel face in washdown or dusty environments. Memory is 1.6K words, programmed via FPWINPRO7 software. RS-485 communication is onboard for Modbus or simple serial links.
RS-485 vs RS-232C — the key delta from AFPE224300
The AFPE224302 uses RS-485; the AFPE224300 uses RS-232C. All other specs are identical.
Weighs 0.287 lb (130.18 g) and mounts via panel cutout — no DIN rail. The tri-color LCD backlight shows 5 characters per row, useful for status readouts. RS-485 wiring: terminate at both ends if using Modbus; shield grounded at panel entry. Outputs: pulse/PWM channels are transistor-sourced, relay output handles up to 2 A resistive, solid-state outputs are suitable for high-cycle DC loads. Verify total current draw from the 24 VDC supply stays within the power budget of your cabinet.
