AFPE224305

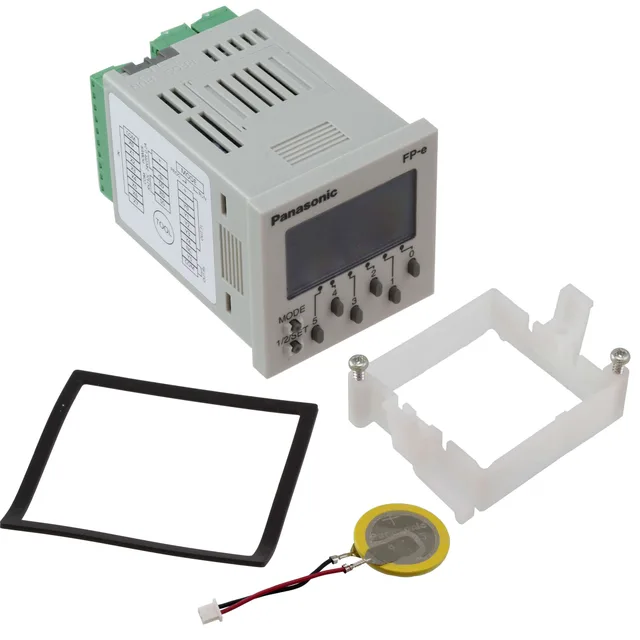

Panasonic Industrial AFPE224305
MPNAFPE224305
Obsolete
CONTROL LOGIC 8 IN 6 OUT 24V
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | FP-E |
I/O
| Parameter | Value |
|---|---|
| Inputs (count and type) | 8 - Digital |
| Outputs (count and type) | 6 - Pulse/PWM (2), Relay (1), Solid State (3) |
| Expandable | Non-Expandable |
Electrical
| Parameter | Value |
|---|---|
| Supply voltage | 24VDC |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature range | 0°C~55°C |
Mechanical
| Parameter | Value |
|---|---|
| Mounting type | Panel Mount |
| Weight | 0.287 lb (130.18 g) |
Approvals
| Parameter | Value |
|---|---|
| Approvals / certifications | CE, cULus |
Other specifications
| Parameter | Value |
|---|---|
| Software | FPWINPRO7 |
| Memory size | 1.6K Words |
| Display type | LCD - Tri Color Characters, Backlight |
| Communications | RS-232C |
| IP rating | IP66 - Dust Tight, Water Resistant |
| Number of characters per row | 5, 5 |
MPN
AFPE224305
