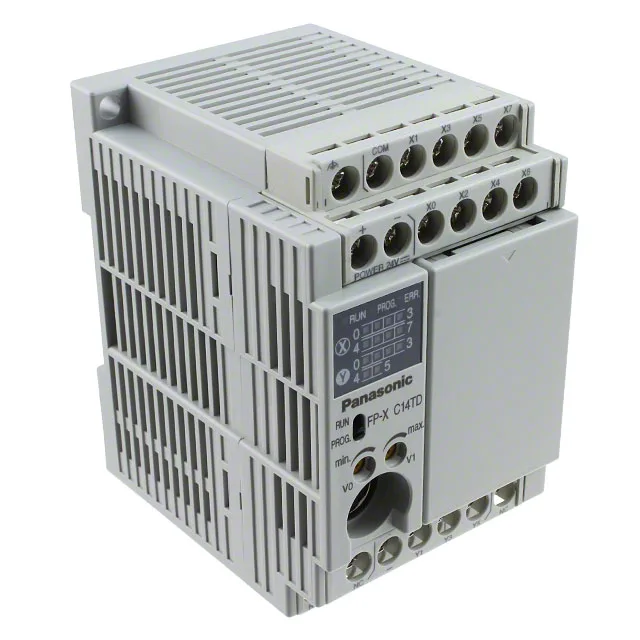

Panasonic Industrial AFPX-C14TD
MPNAFPX-C14TD
Obsolete
CONTROL LOGIC 8 IN 8 OUT 24V
$335.55Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FP-X |
| Parameter | Value |
|---|---|
| Inputs (count and type) | 8 - Digital, Option Cards Available |
| Outputs (count and type) | 6 - Solid State |
| Expandable | 8 Modules Max |
| Parameter | Value |
|---|---|
| Supply voltage | 24VDC |
| Parameter | Value |
|---|---|
| Operating temperature range | 0°C ~ 55°C |
| Parameter | Value |
|---|---|
| Mounting type | Chassis Mount, DIN Rail |
| Weight | 0.617 lb (279.87 g) |
| Parameter | Value |
|---|---|
| Approvals / certifications | CE, cULus |
| Parameter | Value |
|---|---|
| Software | FPWINPRO7 |
| Memory size | 12K Words |
| Display type | No Display |
| Communications | Option Cards Available |
MPN
AFPX-C14TD
