Panasonic Industrial AFPX-E14YR — Digital Output Modules

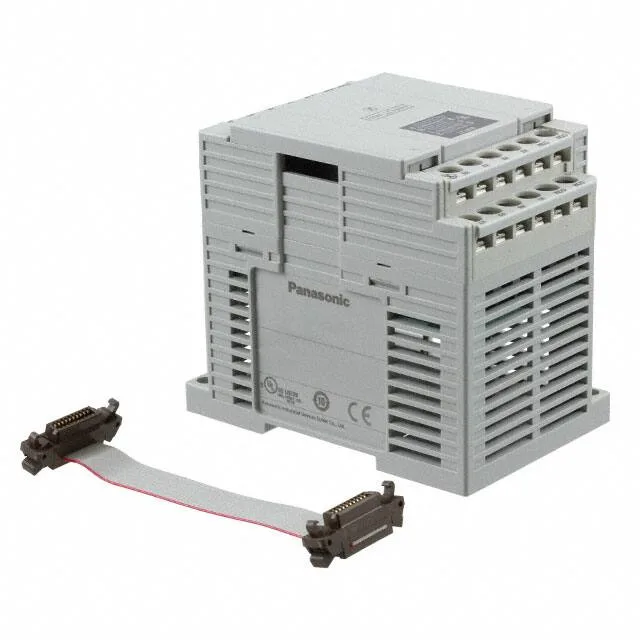

Panasonic AFPX-E14YR Output Module, 14 Relay, FP-X Series

MPNAFPX-E14YR
Active

Panasonic FP-X series output module, AFPX-E14YR, 14 relay outputs, DIN-rail mount, screw terminal, 0°C to 55°C.

$179.09 – $197.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

AFPX-E14YR — Identification
ParameterValue
SeriesFP-X
TypeOutput Module
Compatible withFP-X Series
AFPX-E14YR — Outputs
ParameterValue
Outputs and output technology14 - Relay
AFPX-E14YR — Environmental
ParameterValue
Operating temperature range0°C~55°C
AFPX-E14YR — Mechanical & Connection
ParameterValue
Mounting typeDIN Rail
Termination styleScrew Terminal
AFPX-E14YR — Other specifications
ParameterValue
Weight0.507 lb (229.97 g)

Product details

The AFPX-E14YR is a 14-relay output module for the Panasonic FP-X PLC series. Operating range is 0°C to 55°C, which covers most cabinet environments without derating.

What the 14 relay outputs mean for your BOM

Fourteen relay outputs give you isolated, dry-contact switching for solenoid valves, contactor coils, indicator lamps, or small motor starters — each output is a Form A (normally open) relay rated for the FP-X series' typical 2 A / 250 VAC load. Relay outputs are inherently noise-immune and don't leak current when off, which matters for loads that must stay positively de-energized during a stop condition. The screw terminal blocks accept up to 2.5 mm² wire, so you can run the output wiring directly to the field devices without intermediate terminal strips.

Frequently asked questions

What is the closest functional alternative — the AFPX-E16R?

The AFPX-E16R is a combined 8-input / 8-relay-output module, not a pure output module. The AFPX-E14YR gives you 14 relay outputs with no inputs, so if your panel needs only outputs and the I/O count fits, the AFPX-E14YR is the cleaner fit. The AFPX-E16R would require rewiring the input side and re-mapping the I/O table in the PLC program.

Will the AFPX-E14YR drop into a panel specified for the AFPX-E16R without rewiring?

No. The AFPX-E16R has 8 inputs and 8 outputs; the AFPX-E14YR has 14 outputs and no inputs. The terminal assignments and the I/O map are different, so the panel wiring and the PLC program must be revised.

What type and series is this module?

It is an Output Module in the FP-X series.

MPN
AFPX-E14YR
