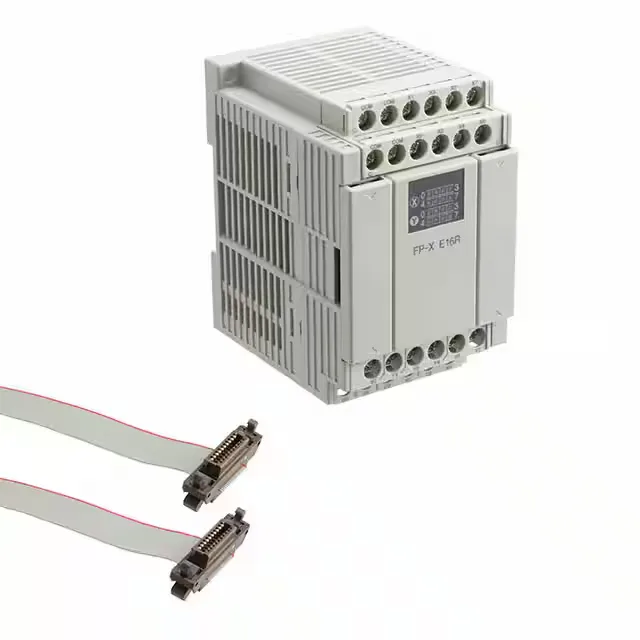

Panasonic Industrial AFPX-E16R

Panasonic AFPX-E16R I/O Module, 8 Digital Inputs, 8 Relay Ou

MPN AFPX-E16R
Active

Panasonic FP-X series I/O module, AFPX-E16R, 8 digital inputs and 8 relay outputs, DIN rail mount, screw terminals, 0-55°C.

$147.60 – $174.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

AFPX-E16R specifications
ParameterValue
SeriesFP-X
Product typeInput, Output (I/O) Module
MountingDIN Rail
Temp operating max55 °C
Temp operating min0 °C
Weight0.43 lb (195.04 g)
PackageBulk

Product details

What this module does for the panel

The Panasonic AFPX-E16R is an I/O module in the FP-X series, providing 8 digital inputs and 8 relay outputs in a single DIN-rail package. The relay outputs handle inductive loads like small contactors and solenoid valves without external snubbers for basic switching — the mechanical contacts isolate the load from the logic side, which simplifies troubleshooting when a field device fails short. Screw terminals mean the panel wireman lands field wiring with a standard driver; no special tooling required. Operating range is 0°C to 55°C, which covers most ventilated enclosures but not unheated outdoor cabinets — plan for derating or auxiliary cooling if the panel sees direct sun or a hot process line.

Eight digital inputs — that's eight 24 VDC sinking inputs typical for limit switches, proximity sensors, or pushbutton contacts. Eight relay outputs — each is a Form A (SPST-NO) contact rated for resistive loads up to 2 A at 250 VAC or 2 A at 30 VDC per the FP-X output spec. The total current per common is limited; if you drive all eight outputs near their individual rating, check the common terminal's continuous rating in the FP-X manual. The operating temperature range is typical for indoor control panels; the 55°C upper bound means it's not rated for hot environments like a steel mill pulpit without derating.

MPN
AFPX-E16R
