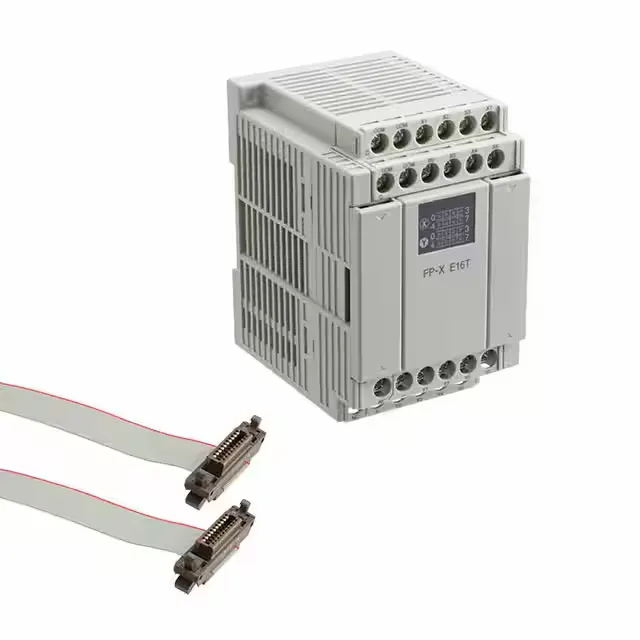

Panasonic FP-X series I/O module, AFPX-E16T, 8 digital inputs, 8 solid state outputs, DIN rail mount, screw terminal, 0°C to 55°C.
| Parameter | Value |
|---|---|
| Series | FP-X |
| Type | Input, Output (I/O) Module |
| Compatible / related products | FP-X Series |
| Parameter | Value |
|---|---|
| Inputs (count and type) | 8 - Digital |
| Outputs (count and type) | 8 - Solid State |
| Parameter | Value |
|---|---|
| Operating temperature range | 0°C~55°C |
| Parameter | Value |
|---|---|
| Termination style | Screw Terminal |
| Mounting type | DIN Rail |
| Parameter | Value |
|---|---|
| Weight | 0.397 lb (180.08 g) |
The AFPX-E16T is a mixed I/O module in Panasonic's FP-X series, combining 8 digital inputs with 8 solid-state outputs in a single DIN-rail package. The solid-state outputs switch faster and last longer than relay types in high-cycle applications — no contact wear, no coil replacement. Screw terminals keep field wiring straightforward for panel builders.
Listed as active in production.
The AFPX-E16P is identical in form factor, mounting, and termination — same 8 digital inputs and 8 solid-state outputs. The difference is the output type: AFPX-E16T uses transistor (sink/source) outputs; AFPX-E16P uses PNP (source) outputs. If your circuit expects a sourcing output, the E16P drops in without rewiring.
Mechanically yes — same DIN-rail footprint, same screw-terminal layout. Electrically, verify the output polarity: AFPX-E16T is transistor (NPN/PNP unspecified in the listing), while AFPX-E16P is PNP. If the load side expects a sourcing signal, the E16T may not drive it without a pull-up.
