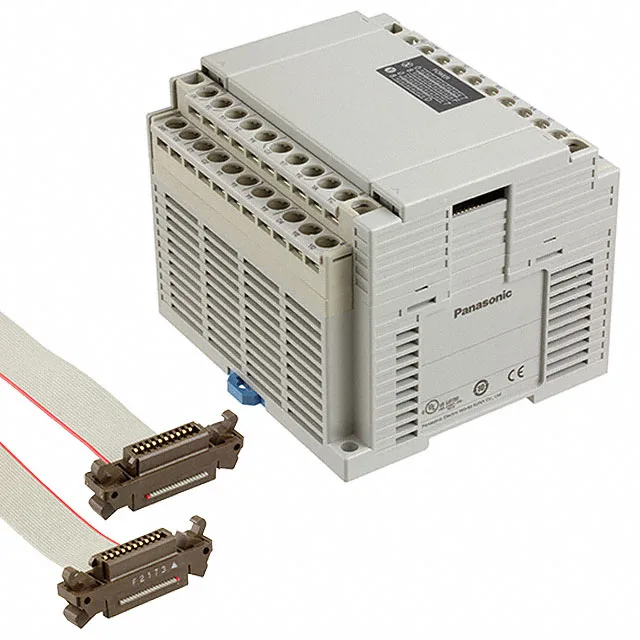

AFPX-E30R, FP-X series I/O module, 16 digital inputs, 14 relay outputs, 100-240 VAC supply, screw terminal, DIN-rail mount.
| Parameter | Value |
|---|---|
| Series | FP-X |
| Type | Input, Output (I/O) Module |
| Compatible / related products | FP-X Series |
| Parameter | Value |
|---|---|
| Inputs (count and type) | 16 - Digital |
| Outputs (count and type) | 14 - Relay |
| Parameter | Value |
|---|---|
| Operating temperature range | 0°C~55°C |
| Parameter | Value |
|---|---|
| Termination style | Screw Terminal |
| Mounting type | DIN Rail |
| Parameter | Value |
|---|---|
| Weight | 1.1 lbs (499 g) |
| Supply voltage | 100 ~ 240VAC |
Mounts on DIN rail with screw terminals that match the FP-X standard: top row for 16 inputs, bottom for 14 relay commons and N.O. contacts. Operating temperature 0–55°C covers most indoor panels; no derating unless ambient exceeds that range.
The AFPX-E30T is the nearest sibling—same 100-240 VAC supply, same 16 digital inputs, screw terminals, and DIN-rail footprint, but with 14 solid-state outputs instead of relay. Before substituting, confirm that solid-state outputs suit your load type and switching frequency.
It is an Input, Output (I/O) Module combining digital inputs and relay outputs.
Yes, mechanically and electrically identical at the terminal block. Only the output devices differ (relay vs. solid state)—the field wiring stays the same.
It is part of the FP-X series, designed for use with FP-X controllers and racks.
Alternative models and sibling configurations in the same Panasonic Industrial series. For obsolete or discontinued parts, these models can serve as compatible replacements or functional alternatives for plant maintenance.
