Panasonic Industrial AFPX0L14R — PLCs (Programmable Logic Controllers)

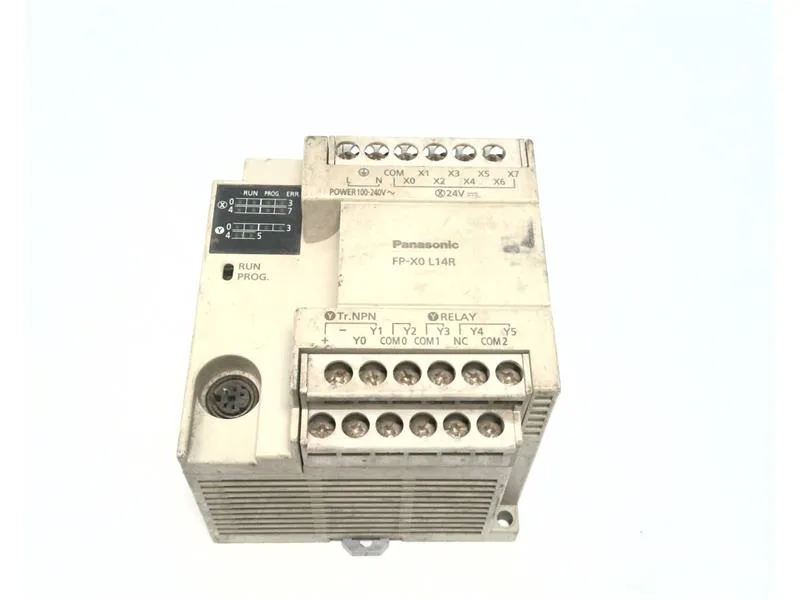

Panasonic AFPX0L14R FP-X0 PLC, 8 In 6 Out, 100-240 VAC

MPNAFPX0L14R
Active

Panasonic FP-X0 series PLC, AFPX0L14R, 8 digital inputs, 6 outputs (pulse, PWM, relay), 100-240 VAC supply, 2.5K words memory, non-expandable, chassis/DIN rail mount, CE approved.

$116.00 – $200.71Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

AFPX0L14R — Identification
ParameterValue
SeriesFP-X0
AFPX0L14R — I/O
ParameterValue
Inputs (count and type)8 - Digital
Outputs (count and type)6 - Pulse (1), PWM (1), Relay (4)
ExpandableNon-Expandable
AFPX0L14R — Electrical
ParameterValue
Supply voltage100 ~ 240VAC
AFPX0L14R — Environmental
ParameterValue
Operating temperature range0°C~55°C
AFPX0L14R — Mechanical
ParameterValue
Mounting typeChassis Mount, DIN Rail
Weight0.617 lb (279.87 g)
AFPX0L14R — Approvals
ParameterValue
Approvals / certificationsCE
AFPX0L14R — Other specifications
ParameterValue
SoftwareFPWINPRO7
Memory size2.5K Words
Display typeNo Display

Product details

The Panasonic AFPX0L14R is a compact, non-expandable PLC from the FP-X0 series, sized for small machine control where you need a fixed I/O count and a universal power supply. It brings eight digital inputs and six outputs — one pulse output, one PWM output, and four relay outputs — running on 100 to 240 VAC. That relay bank handles motor starters or contactor coils directly, while the pulse/PWM channels give you basic speed control for a small stepper or a heater. Memory sits at 2.5K words, enough for a straightforward ladder program for a single station or a simple conveyor zone.

CE marked for the European market. The part ships in bulk packaging.

Frequently asked questions

What is the closest functional alternative to the AFPX0L14R?

The AFPX0L40R is a larger sibling in the same FP-X0 series — it has 24 digital/analog inputs and 16 outputs (pulse, PWM, relay), is expandable with up to three modules, and has 8K words of memory. It does not drop into the same panel without rewiring because the I/O count and terminal layout differ, but it shares the same power supply range, mounting style, and programming software.

What is the AFPX0L14R's series?

It belongs to the Panasonic FP-X0 series.

What approvals does the AFPX0L14R carry?

It is CE approved. Evidence does not list RoHS, REACH, UL, or IEC documentation for this specific order code.
