Panasonic Industrial AFPXHC14T

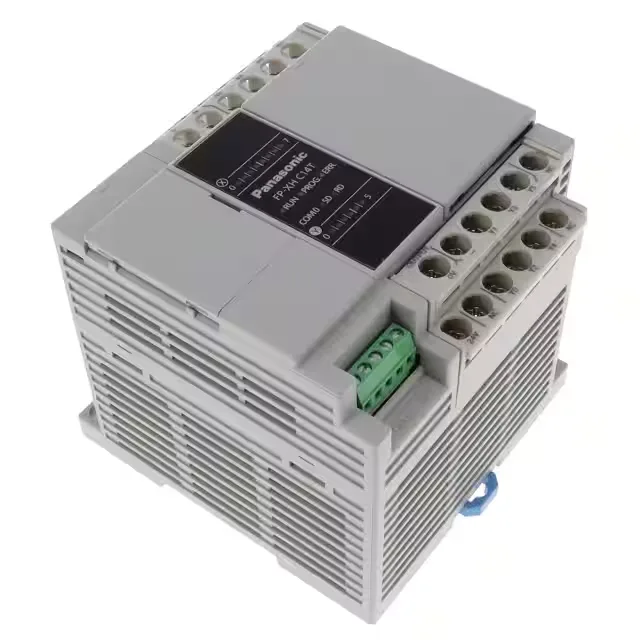

Panasonic AFPXHC14T FP-XH CPU, 8 Digital Inputs, 6 Solid Sta

MPN AFPXHC14T
Active

Panasonic FP-XH CPU, AFPXHC14T, 8 digital inputs, 6 solid state NPN outputs, 100~240VAC supply, DIN rail mount, 0°C to 55°C.

$193.00 – $288.62 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

AFPXHC14T specifications
ParameterValue
Supply voltage100 to 240VAC
MountingDIN Rail
Temp operating max55 °C
Temp operating min0 °C
PackageBox

Product details

The Panasonic AFPXHC14T is a FP-XH series CPU with 8 digital inputs and 6 solid state outputs (NPN type), running on 100 to 240 VAC. This is the core controller for a small machine or standalone station — the I/O count fits applications like a pick-and-place cell, a packaging wrapper, or a simple conveyor section where you need a handful of digital signals and no analog or motion axes.

The 8 digital inputs are the standard sink/source type for the FP-XH platform — they read limit switches, proximity sensors, or pushbuttons directly. The 6 solid state outputs are NPN (sinking), so they switch DC loads like indicator lamps, small relays, or solenoid valves; they do not switch AC loads or high-current contactors. The 100 to 240 VAC supply means the CPU powers directly from a control transformer or line voltage without an external 24 VDC power supply — that saves a panel component and simplifies wiring for a line-powered machine.
