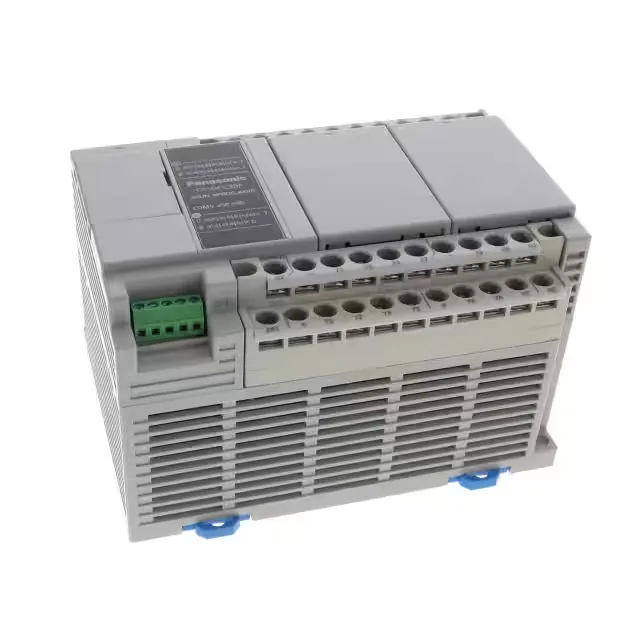

Panasonic AFPXHC30P is an FP-XH series CPU unit with 16 digital inputs and 14 digital outputs, powered from 100 to 240 VAC. It carries 32K Words of program memory backed by a battery for retention, and includes RS-232C and USB ports for programming and HMI connection. The base unit expands up to 8 modules via the FP-X bus. DIN rail mount, rated 0–55 °C ambient.
Panasonic AFPXHC30P FP-XH, 16 Inputs 14 Outputs, 100-240VAC
MPNAFPXHC30P
Active
Panasonic AFPXHC30P FP-XH CPU, 16 digital inputs, 14 digital outputs, 100~240VAC, 32K Words, RS-232C, USB, DIN Rail.
$437.41 – $455.98Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Inputs (count and type) | 16 - Digital |
| Outputs (count and type) | 14 - Digital |
| Parameter | Value |
|---|---|
| Operating temperature range | 0°C ~ 55°C |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Parameter | Value |
|---|---|
| Features | Battery Backup |
| Software | FPWINGR7, FPWINPRO7 |
| Expandable | 8 Modules Max |
| Memory size | 32K Words |
| Communications | RS-232C, USB |
| Supply voltage | 100 ~ 240VAC |
Product details
Frequently asked questions
What package does AFPXHC30P ship in?
Box packaging, as listed in the specifications.
Does AFPXHC30P include battery backup?
Yes, battery backup is a listed feature for retaining program and retentive data.
MPN
AFPXHC30P
