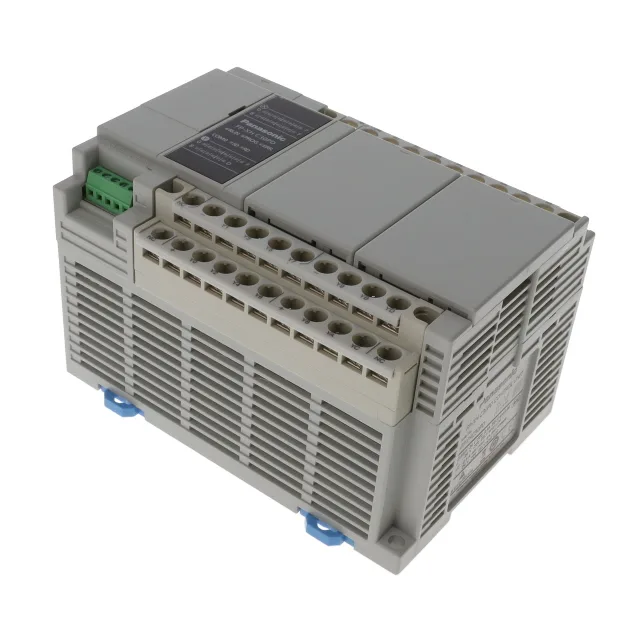

Panasonic AFPXHC30PD is a compact FP-XH series CPU module running on 24VDC. It brings 16 digital inputs and 14 digital outputs in one DIN-rail unit, with 32K words of program memory and a battery backup that holds the cure recipe through a power cycle. Communication is via RS-232C and USB, and the CPU can expand up to 8 additional modules.
Panasonic AFPXHC30PD FP-XH CPU, 24VDC, 16 Inputs 14 Outputs
MPNAFPXHC30PD
Active
Panasonic FP-XH CPU module, AFPXHC30PD, 24VDC, 16 digital inputs, 14 digital outputs, 32K word memory, battery backup.
$437.41 – $455.98Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Inputs (count and type) | 16 - Digital |
| Outputs (count and type) | 14 - Digital |
| Parameter | Value |
|---|---|
| Operating temperature range | 0°C ~ 55°C |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Parameter | Value |
|---|---|
| Features | Battery Backup |
| Software | FPWINGR7, FPWINPRO7 |
| Expandable | 8 Modules Max |
| Memory size | 32K Words |
| Communications | RS-232C, USB |
| Supply voltage | 24VDC |
Product details
Frequently asked questions
Will the AFPXHC30PD drop into a panel specified around the AFPXHC30P without rewiring?
No. The AFPXHC30P runs on 100–240 VAC, while the AFPXHC30PD requires 24VDC. The power supply wiring and possibly the power supply module must be changed.
What is the package type for the AFPXHC30PD?
The listed package is Box.
Does the AFPXHC30PD have battery backup?
Yes, battery backup is a listed feature, retaining the program and data during a power outage.
MPN
AFPXHC30PD
