Panasonic Industrial FP0-C10CRS — PLC I/O & Expansion Modules

Panasonic FP0-C10CRS I/O Module, 6 Digital Inputs 4 Relay Ou

MPNFP0-C10CRS
Active

Panasonic FP0 Series, Input, Output (I/O) Module, 6 Digital Inputs, 4 Relay Outputs, DIN Rail, Pluggable Screw Terminal.

$212.16 – $245.01Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

FP0-C10CRS — Identification
ParameterValue
SeriesFP0
TypeInput, Output (I/O) Module
Compatible / related productsFP-X Series
FP0-C10CRS — I/O
ParameterValue
Inputs (count and type)6 - Digital
Outputs (count and type)4 - Relay
FP0-C10CRS — Environmental
ParameterValue
Operating temperature range0°C~55°C
FP0-C10CRS — Mechanical
ParameterValue
Termination styleCircular, Pluggable Screw Terminal
Mounting typeDIN Rail

Product details

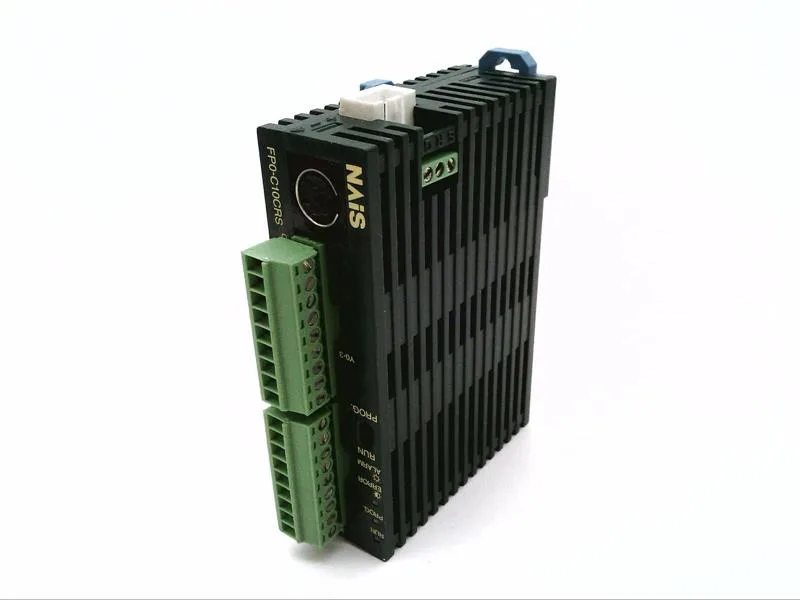

The Panasonic FP0-C10CRS is a compact I/O module from the FP0 series, combining 6 digital inputs and 4 relay outputs in a single DIN-rail package. It terminates via circular pluggable screw terminals, which simplifies panel wiring and allows pre-termination of the cable harness before the module is snapped onto the rail.

The 6 digital inputs are suitable for discrete sensors (limit switches, proximity detectors) or pushbutton signals. The 4 relay outputs handle loads up to the relay contact rating — typically 2 A at 250 VAC for FP0 relay modules — so they can drive small contactors, solenoid valves, or indicator lamps directly without an interposing relay.

Compatibility and mounting

The module is designed for use with the FP-X series controllers, meaning it communicates over the FP0 expansion bus and is mechanically keyed for the FP0 backplane. DIN-rail mount means it clips onto standard 35 mm rail. The pluggable screw terminal block can be removed for wiring on the bench, then snapped onto the module after the cable bundle is dressed.

Frequently asked questions

What is the closest functional second-source — AFP0RE8RS?

The AFP0RE8RS is a similar FP0R-series module with 4 digital inputs and 4 relay outputs, but it belongs to the FP0R family, not FP0. The FP0-C10CRS offers 6 digital inputs versus 4, and the bus interface differs between FP0 and FP0R — they are not drop-in compatible without a bus adapter or controller change.

What compliance documentation does this brand provide for FP0-C10CRS?

The evidence does not list specific compliance certifications (CE, UL, RoHS) for this part. Panasonic typically provides a Declaration of Conformity and RoHS/REACH statements upon request through the distributor.

MPN
FP0-C10CRS
