Panasonic Industrial FP2-C2 — PLCs (Programmable Logic Controllers)

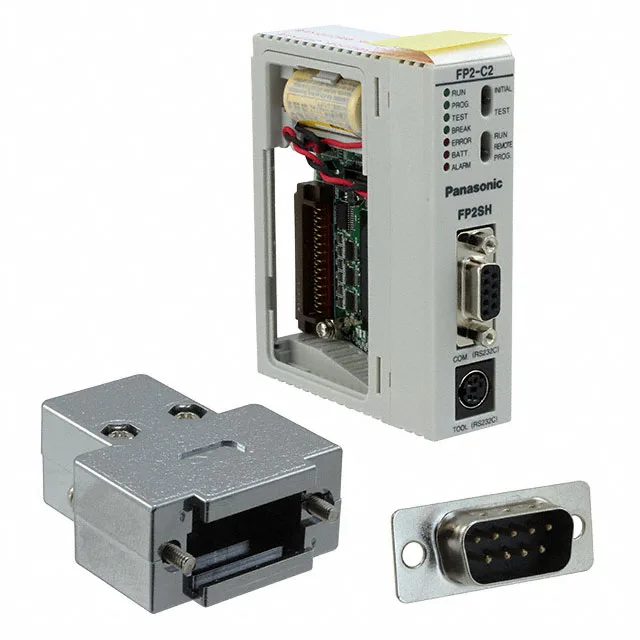

Panasonic FP2-C2 FP2SH CPU, 10K Words, RS-232C, Discontinued

MPNFP2-C2
Obsolete

Panasonic FP2SH series control logic CPU, 10K Words memory, RS-232C, expandable to 32 modules, Bulk package.

$1,764.01 – $3,031.45Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

FP2-C2 — Identification
ParameterValue
SeriesFP2SH
FP2-C2 — I/O
ParameterValue
Expandable32 Modules Max
FP2-C2 — Environmental
ParameterValue
Operating temperature range0°C~55°C
FP2-C2 — Mechanical
ParameterValue
Mounting typeBackplane
FP2-C2 — Approvals
ParameterValue
Approvals / certificationsCE, CSA, cULus, UL
FP2-C2 — Other specifications
ParameterValue
FeaturesBattery Backup
SoftwareFPWINPRO7
Memory size10K Words
Display typeNo Display
CommunicationsRS-232C

Product details

CPU overview — FP2SH series

The FP2-C2 is a control logic CPU from Panasonic's FP2SH series, rated for 60K steps of program capacity. It carries 10K Words of memory, supports RS-232C communication, and is expandable up to 32 modules via the backplane. Battery backup retains the program during power loss. Programming is done with FPWINPRO7 software.

Lifecycle — discontinued

This part is discontinued by Panasonic.

Sourcing and replacement

For a functional second-source, the FP2-C2L is the closest peer — it shares the same series (FP2SH), memory size (10K Words), expandability (32 modules), communications (RS-232C), approvals, and operating temperature range. The only difference is the package: FP2-C2 is Bulk, FP2-C2L is also Bulk. It will drop into a panel wired for the FP2-C2 without rewiring, as the backplane mounting and electrical interface are identical.

The FP2-C2 carries CE, CSA, cULus, and UL approvals.

MPN
FP2-C2
