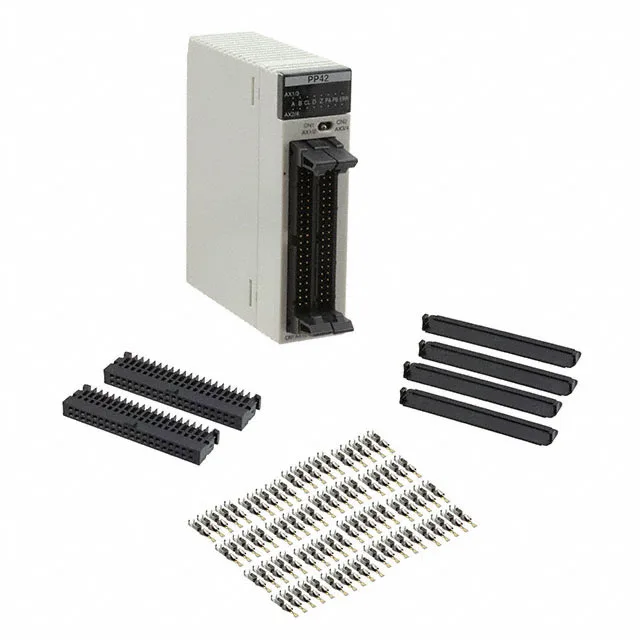

Panasonic Industrial FP2-PP42 — PLCs (Programmable Logic Controllers)

Panasonic FP2-PP42 Motion Control Module, 4-Axis, Backplane Mount

MPNFP2-PP42

Obsolete

Panasonic FP2-PP42 Motion Control Module, Series FP2, 4-Axis Control, Backplane Mount, CE, CSA, cULus, UL.

$476.00Ref. price · indicative, final on quote

Add to RFQ

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

FP2-PP42 — Identification
Parameter	Value
Series	FP2

FP2-PP42 — I/O
Parameter	Value
Outputs (count and type)	4 - Pulse

FP2-PP42 — Environmental
Parameter	Value
Operating temperature range	0°C ~ 55°C

FP2-PP42 — Mechanical
Parameter	Value
Mounting type	Backplane
Termination style	Rectangular Connector

FP2-PP42 — Approvals
Parameter	Value
Approvals / certifications	CE, CSA, cULus, UL

FP2-PP42 — Other specifications
Parameter	Value
Type	Motion Control Module
Features	4-Axis Control

Product details

Motion control for FP2 backplane

The FP2-PP42 is a Motion Control Module in the FP2 series, providing 4-axis pulse output for stepper or servo drives. It mounts on the FP2 backplane and uses a rectangular connector for I/O.

Sourcing reality: discontinued

Panasonic has discontinued the FP2-PP42. Sourcing now depends on surplus or broker channels.

Drop-in vs FP2-PP2

The FP2-PP42 shares the same backplane mounting, rectangular connector, approvals (CE, CSA, cULus, UL), and temperature range as the 2-axis FP2-PP2. The difference is axis count: 4-axis vs 2-axis. Wiring and physical footprint are identical, so it drops into a panel wired for FP2-PP2 without rewiring — but the control program must be updated to use the extra axes.
