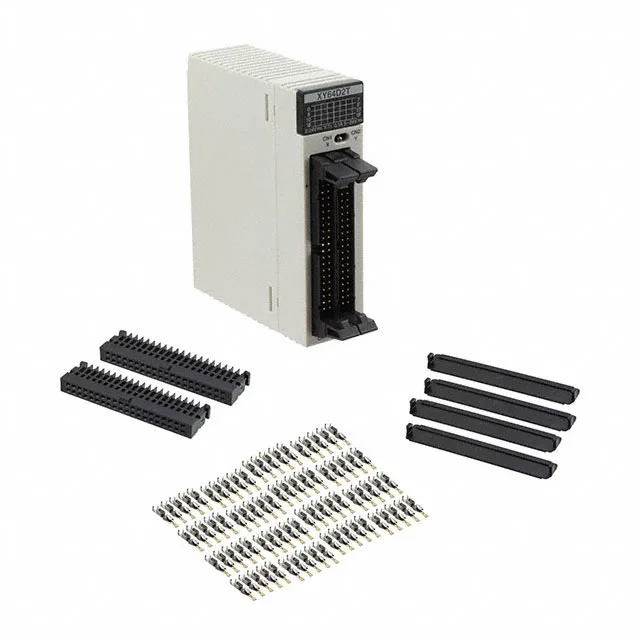

Panasonic FP2 series, Input, Output (I/O) Module, FP2-XY64D2T, 32 digital inputs, 32 solid-state outputs, backplane mount, 0°C ~ 55°C.
| Parameter | Value |
|---|---|
| Series | FP2 |
| Type | Input, Output (I/O) Module |
| Compatible / related products | FP2, FP2SH Series |
| Parameter | Value |
|---|---|
| Inputs (count and type) | 32 - Digital |
| Outputs (count and type) | 32 - Solid State |
| Parameter | Value |
|---|---|
| Operating temperature range | 0°C ~ 55°C |
| Parameter | Value |
|---|---|
| Termination style | Rectangular Connector |
| Mounting type | Backplane |
| Parameter | Value |
|---|---|
| Approvals / certifications | CE, CSA, cULus, UL |
| Parameter | Value |
|---|---|
| Weight | 0.265 lb (120.2 g) |
FP2-XY64D2T is an Input, Output (I/O) Module in the FP2 series, packing 32 digital inputs and 32 solid-state outputs onto a single backplane-mount module. Rated for 0°C ~ 55°C ambient, it carries CE, CSA, cULus, and UL approvals.
This part is discontinued.
Termination is via rectangular connector. The module mounts on a backplane in an FP2 or FP2SH rack. The 32 solid-state outputs are sourcing (PNP) by convention in the FP2 family.
