FPG-C32T2H

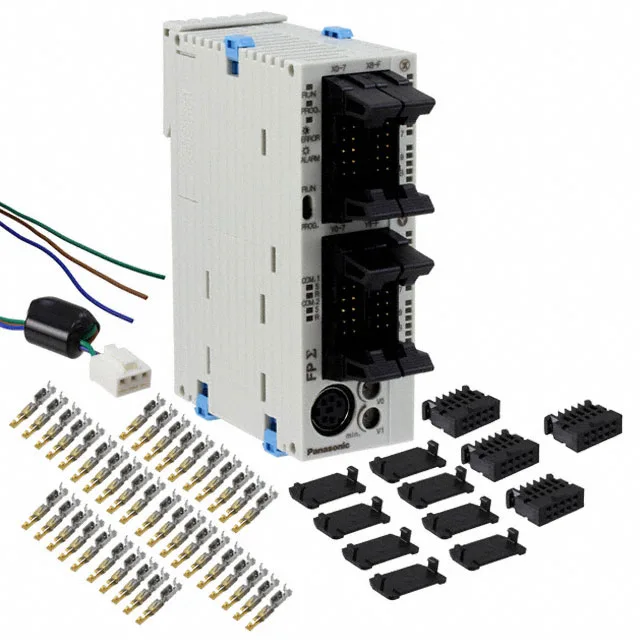

Panasonic Industrial FPG-C32T2H
MPNFPG-C32T2H
Obsolete
CONTROL LOGIC 16 IN 16 OUT 24V
$549.00 – $1,465.15Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | FP Sigma |
I/O
| Parameter | Value |
|---|---|
| Inputs (count and type) | 16 - Digital |
| Outputs (count and type) | 16 - Pulse (2), PWM (2), Solid State (12) |
| Expandable | 7 Modules Max |
Electrical
| Parameter | Value |
|---|---|
| Supply voltage | 24VDC |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature range | 0°C~55°C |
Mechanical
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Weight | 0.265 lb (120.2 g) |
Approvals
| Parameter | Value |
|---|---|
| Approvals / certifications | CE, cULus |
Other specifications
| Parameter | Value |
|---|---|
| Software | FPWINPRO7 |
| Memory size | 32K Words |
| Display type | No Display |
| Communications | Option Cards Available |
MPN
FPG-C32T2H
