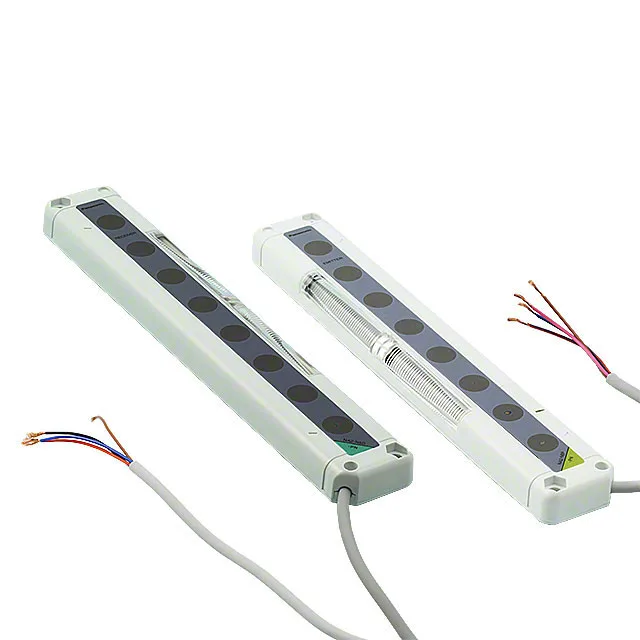

Panasonic NA2-N8-PN through-beam photoelectric sensor, slim NA2-N series, 140mm sensing gap, 950nm infrared, PNP open collector, 10ms response, 12-24V supply, 3m cable, IP40.
| Parameter | Value |
|---|---|
| Series | NA2-N |
| Parameter | Value |
|---|---|
| Sensing method | Through-Beam |
| Sensing distance | 5.512" (140mm) |
| Response time | 10ms |
| Light source | Infrared (950nm) |
| Parameter | Value |
|---|---|
| Output configuration | PNP - Open Collector |
| Parameter | Value |
|---|---|
| Operating temperature range | -10°C ~ 55°C |
| Parameter | Value |
|---|---|
| Cable length | 118.10" (3m) |
| Supply voltage | 12V ~ 24V |
| Connection method | Cable |
| IP rating | IP40 |
Panasonic NA2-N8-PN from the NA2-N series is a through-beam sensor with 140mm gap, 950nm infrared, PNP output, 10ms, 12V ~ 24V, 3m cable, IP40.
Fixed 140mm through-beam gap requires emitter-receiver alignment across a clean path. PNP output switches in 10ms; 3m cable is molded, IP40.
The NA2-N8-PN is part of the NA2-N series, a family of slim-body area sensors.
Packaged in a box per the listing.
No. The EX-L221-P-J uses reflective laser sensing (single unit) while the NA2-N8-PN uses through-beam (emitter + receiver). Their cable lengths also differ (232mm vs 3m). The output and voltage are compatible, but mounting, wiring, and timing adjustments are required.
The NA2-N8-PN switches in 10ms.
