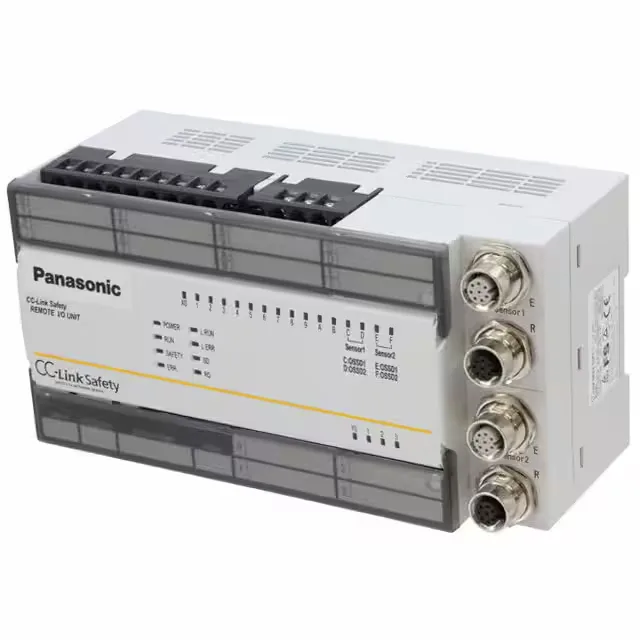

Panasonic Industrial SF-CL1T264T
MPNSF-CL1T264T
Active
CONTROL SAFETY GEN PURPOSE 24V
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | SF |
| Controller type | General Purpose |
Safety & Performance
| Parameter | Value |
|---|---|
| Safety category (Cat / PL / SIL) | Category 4, PLe, SIL3 |
I/O
| Parameter | Value |
|---|---|
| Safety outputs (count and type) | Solid State (6) |
| Inputs (count and type) | 8 - Digital |
Electrical
| Parameter | Value |
|---|---|
| Supply voltage | 24VDC |
| Termination style | Circular, Screw Terminal |
Mechanical
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
Environmental
| Parameter | Value |
|---|---|
| Ingress protection (IP/NEMA) | IP20 |
| Operating temperature range | 0°C~55°C |
Approvals
| Parameter | Value |
|---|---|
| Approval agencies | CE, TUV, UL |
Other specifications
| Parameter | Value |
|---|---|
| Weight | 1.5 lbs (680.4 g) |
| Features | Muting Lamp Output |
MPN
SF-CL1T264T
