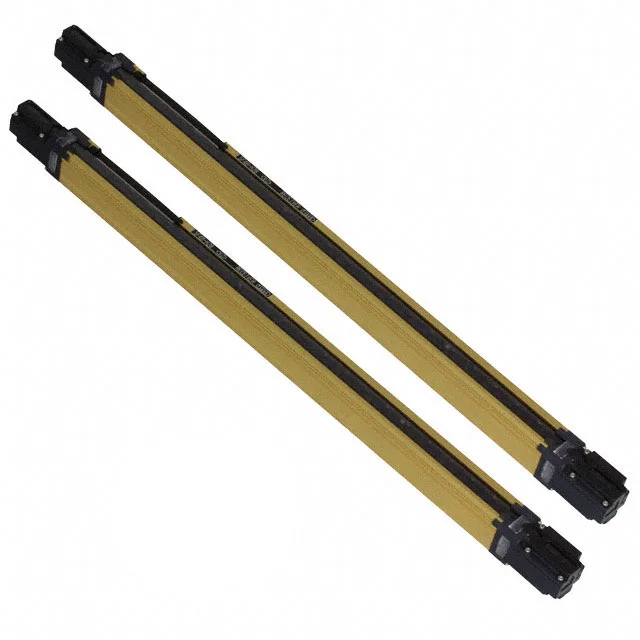

Panasonic SF4B series, SF4B-H64G(V2) light curtain, hand protection, 64 beams, 20mm pitch, 0.3m~9.0m range, 24VDC, protective height 1284mm, IP65/IP67.
| Parameter | Value |
|---|---|
| Series | SF4B |
| Parameter | Value |
|---|---|
| Detection capability (resolution) | 25mm |
| Protection | Hand |
| Protective height | 1284mm |
| Operating range (sensing distance) | 0.3m ~ 9.0m |
| Number of beams | 64 |
| Beam pitch | 20mm |
| Features | Blanking, Muting Function |
| Parameter | Value |
|---|---|
| Supply voltage | 24VDC |
| Parameter | Value |
|---|---|
| Operating temperature | -10°C~55°C |
| Ingress protection (IP) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof |
The SF4B-H64G(V2) includes blanking and muting functions, which allow selective beam suppression for workpiece pass-through and temporary override during material handling. These are configured via the controller — no external bypass relays needed. The package is a boxed set (emitter + receiver + cables typically), so plan for mounting brackets and alignment tools.
