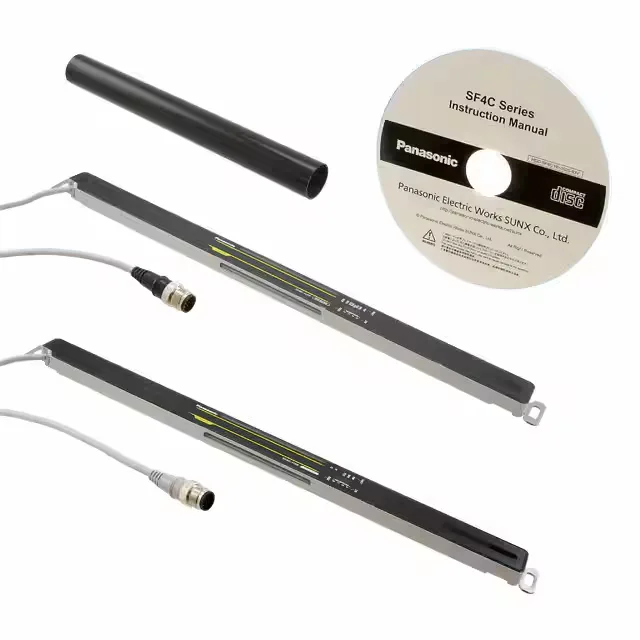

Panasonic Industrial SF4C-H20-J05
MPNSF4C-H20-J05
Active
LIGHT CURTAIN HAND 25MM
$1,000.00 – $1,100.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SF4C |
| Parameter | Value |
|---|---|
| Detection capability (resolution) | 25mm |
| Protection | Hand |
| Protective height | 400mm |
| Operating range (sensing distance) | 0.1m ~ 3.0m |
| Number of beams | 20 |
| Beam pitch | 20mm |
| Features | Blanking, Muting Function |
| Parameter | Value |
|---|---|
| Supply voltage | 24VDC |
| Parameter | Value |
|---|---|
| Operating temperature | -10°C~55°C |
| Ingress protection (IP) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof |
MPN
SF4C-H20-J05
