Panasonic Industrial SF4D-F47-01

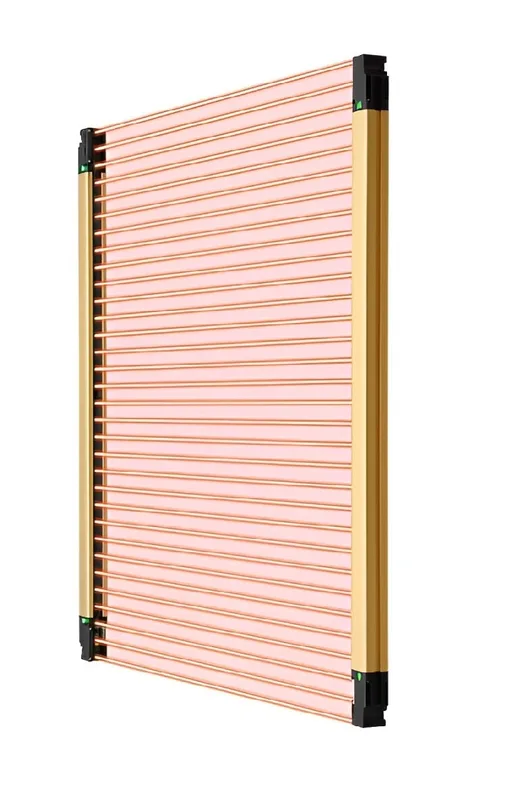

Panasonic SF4D-F47-01 Light Curtain, 47 Beams, 14 mm Resolution

MPN SF4D-F47-01
Active

Panasonic SF4D Series SF4D-F47-01 Type 4 finger light curtain, 470 mm height, 47 beams, 14 mm resolution, 10 mm beam pitch, 0.8 m to 12.0 m range, 24 VDC, IP67, bulk.

$1,823.01 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

SF4D-F47-01 specifications
ParameterValue
SeriesSF4D
Supply voltage24 VDC
Temp operating max55 °C
Temp operating min-10 °C
PackageBulk

Product details

Overview

The SF4D-F47-01 is a Panasonic SF4D Series Type 4 finger-protection light curtain with 47 beams at a 10 mm pitch, delivering a 14 mm resolution over a 470 mm protected height. It operates from 0.8 m to 12.0 m on a 24 VDC supply and is rated IP67. It remains in active production, supporting blanking and muting functions for flexible machine guarding integration.

Selection vs. hand-protection variant

Compared to the SF4D-H80-01 hand-protection model (25 mm resolution, 80 beams at 20 mm pitch, 0.2 m to 15.0 m range), the SF4D-F47-01's finer 14 mm resolution and 10 mm pitch detect smaller objects — fingers rather than hands — but its 0.8 m minimum range is longer, so it suits closer guarding where object size matters more than reach.

MPN
SF4D-F47-01
