Panasonic Industrial SF4D-H80
MPNSF4D-H80
Active

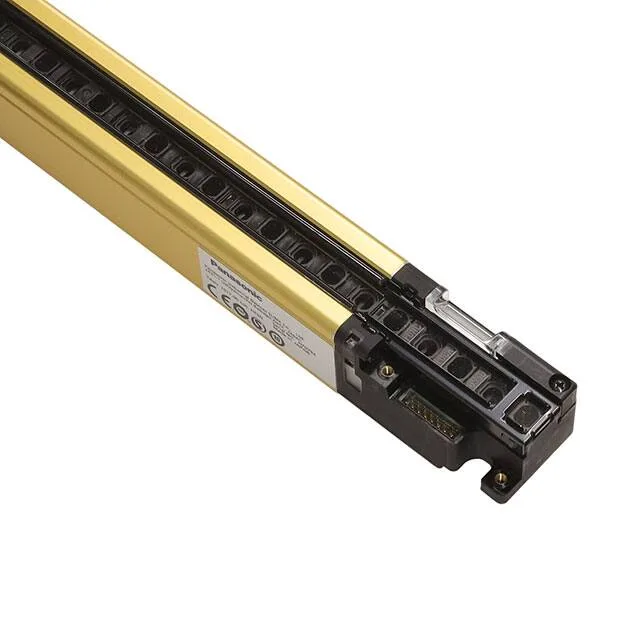

LIGHT CURTAIN HAND 25MM
$3,492.01Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SF4D |
| Parameter | Value |
|---|---|
| Detection capability (resolution) | 25mm |
| Protection | Hand |
| Protective height | 1590mm |
| Operating range (sensing distance) | 0.2m ~ 9.0m, 0.8m ~ 15.0m |
| Number of beams | 80 |
| Beam pitch | 20mm |
| Features | Blanking, Muting Function |
| Parameter | Value |
|---|---|
| Supply voltage | 24VDC |
| Parameter | Value |
|---|---|
| Operating temperature | -10°C~55°C |
| Ingress protection (IP) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof, NEMA 13 |
MPN
SF4D-H80
